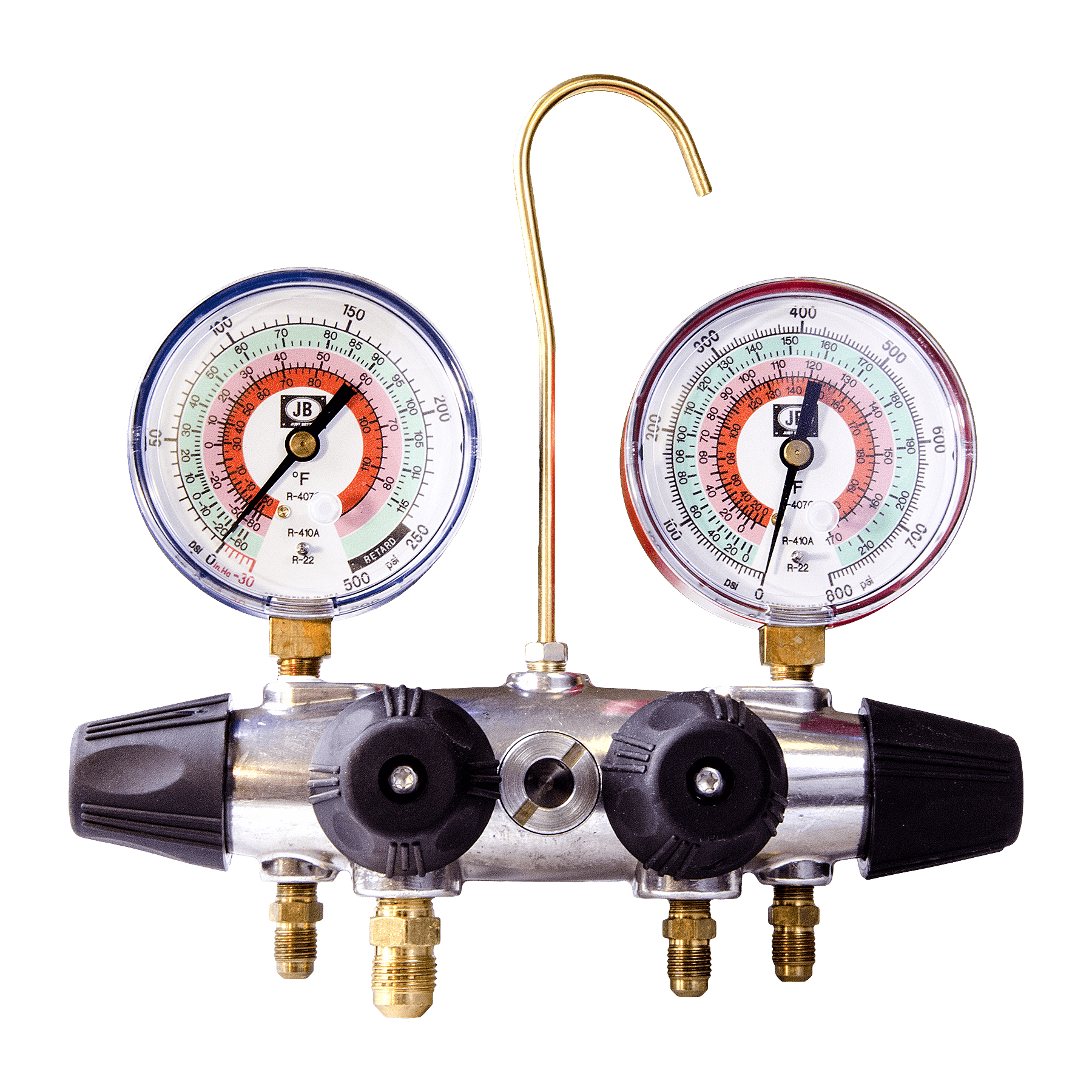

Jb Industries 25425 4-valve Forged Aluminum Manifold

Product Description

The JB INDUSTRIES 25425 is a 4-valve forged aluminum refrigerant manifold designed for HVAC technicians working with R22, R407C, and R410A systems. Built around a 3-1/8 inch illuminated gauge face, this manifold provides clear pressure readings in low-light service environments. The forged aluminum body delivers a durable, lightweight platform for refrigerant recovery, evacuation, and charging work. At 3.25 pounds and measuring 11.75 inches in length, it is compact enough for field use while providing four-valve control for precise refrigerant management. Licensed HVAC technicians performing system service and commissioning are the primary users of this manifold.

This manifold is suited for residential and light commercial HVAC service applications where technicians need multi-refrigerant compatibility on a single tool. It supports R22, R407C, and R410A refrigerants, covering both legacy and current-generation systems. The four-valve configuration allows independent control of high-side, low-side, and utility port connections, giving the technician tighter control during charging and recovery procedures. It ships as manifold only, without hoses.

Key Features

• 4-valve design for independent high-side, low-side, and utility port control
• 3-1/8 inch illuminating gauges for clear readings in low-light conditions
• Forged aluminum body for durability and reduced field weight
• Compatible with R22, R407C, and R410A refrigerants
• Compact footprint at 11.75 x 4.5 x 11.13 inches and 3.25 pounds
• Manifold-only configuration allows pairing with hoses of the technician's choice

Compatibility

Designed for use with R22, R407C, and R410A refrigerant systems. Suitable as a service manifold for residential and light commercial HVAC equipment using these refrigerants.

Installation Notes

Installation and use of refrigerant manifolds should be performed by EPA Section 608 certified HVAC technicians. Before connecting to any system, ensure the system is de-energized and that all high-side and low-side service valves are in the closed position. Verify gauge port fittings are compatible with the system service ports before making connections. Follow all applicable local codes and refrigerant handling regulations when recovering or charging refrigerant.

Technical Specifications

• Gauge Face Diameter: 3-1/8 inches
• Valve Count: 4
• Compatible Refrigerants: R22, R407C, R410A
• Body Material: Forged Aluminum
• Length: 11.75 inches
• Width: 4.5 inches
• Height: 11.13 inches
• Weight: 3.25 pounds
• Quantity Per Pack: 1

Standard Information

• Brand: JB INDUSTRIES
• Manufacturer Part Number: 25425
