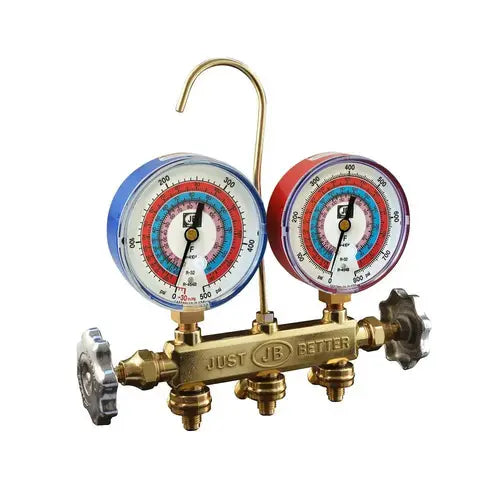

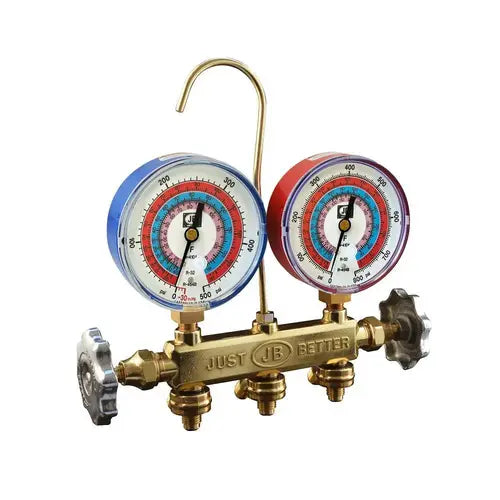

Jb Industries 22625 Patriot 2-valve Brass Manifold A2L

Product Description

The JB INDUSTRIES 22625 Patriot is a 2-valve brass manifold engineered for HVAC technicians working with A2L refrigerants including R410A, R32, and R454B. Built on a solid brass forging, this manifold features 80 mm surge-dampened gauges that reduce needle movement during pressure readings, making it easier to get accurate results on active systems. The original free-floating dual O-ring sealing system accelerates both evacuation and charging procedures. Easy-to-grip metal handles and a rugged bar design make this manifold well-suited for repeated daily use in the field. A pull-out proof hanging hook and 360-degree swiveling hose holders add practical jobsite convenience.

The 22625 is designed for residential and light commercial HVAC service work where A2L refrigerant handling is required. It is appropriate for systems charged with R410A, R32, or R454B. Licensed HVAC technicians performing refrigerant recovery, evacuation, and charging on split systems, mini-splits, and other equipment using these refrigerant types will find this manifold a direct fit for standard service procedures.

Key Features

• Solid brass forging for durability and long service life
• 80 mm surge-dampened gauges reduce needle flutter during readings
• Free-floating dual O-ring sealing system for faster evacuation and charging
• 360-degree swiveling hose holders for flexible hose routing
• Pull-out proof hanging hook for secure tool storage on the job
• Easy-to-grip metal handles on a rugged bar design
• Compatible with A2L refrigerants R410A, R32, and R454B

Compatibility

Designed for use with A2L refrigerants R410A, R32, and R454B on residential and light commercial HVAC systems requiring standard 2-valve manifold service procedures.

Installation Notes

Installation and use should be performed by a licensed HVAC technician certified for refrigerant handling in accordance with EPA Section 608 requirements. Always recover refrigerant and verify system pressure is equalized before connecting or disconnecting manifold hoses. R32 and R454B are mildly flammable A2L refrigerants — follow applicable safety codes and avoid ignition sources during service. Inspect O-rings and hose connections for wear before each use to maintain a leak-free manifold circuit.

Technical Specifications

• Valve Count: 2-valve
• Gauge Size: 80 mm
• Gauge Type: Surge dampened
• Refrigerant Compatibility: R410A, R32, R454B (A2L)
• Body Material: Solid brass forging
• Sealing System: Free-floating dual O-ring
• Warranty: 1 year on gauges; lifetime on bar

Standard Information

• Brand: JB INDUSTRIES
• Manufacturer Part Number: 22625
