Jay R Smith 5619 (-SAP) Guardian Dual Check Quarter Turn Non-Freeze Wall Hydrant 3/4 x 1/2 in

Product Description

The JAY R SMITH 5619 (-SAP) Guardian Dual Check Quarter Turn Non-Freeze Wall Hydrant is designed for installation in interior or exterior building walls, providing non-freeze protection. Features a quarter turn full-flow mechanism and flush installation. It is adaptable to various wall constructions and includes an integral vacuum breaker and dual check valve.

• Quarter turn full-flow feature
• Flush installation to eliminate catch points
• Automatic draining integral vacuum breaker and dual check valve

Product Highlights

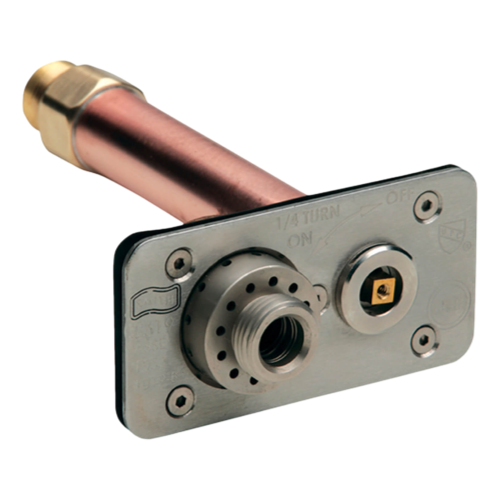

Bronze quarter turn non-freeze automatic draining hydrant with stainless steel face, exposed hose connection, integral vacuum breaker, dual check valve, and T handle key.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 5619 (-SAP)

Technical Specifications

• Type: Quarter Turn
• Series: 5619
• Nominal Size: 3/4 x 1/2 in
• End Style: MNPT x FNPT
• Wall Opening: 2-1/4 x 4 in
• Handle Style: T Handle
• Material: Bronze
• Inlet Style: 3/4"MPT x 1/2"FPT
• Length: Short As Possible
• Recommended Wall Opening: 2 1/4" x 4"
• Inlet Size: 1/2 or 3/4 in
• Inlet Type: FNPT or MNPT
• Handle Type: Standard
• Wall Opening Size: 2-1/4 x 4 in
• Brand: Smith®
• UNSPSC: 40141726
• Manufacturer: Jay R. Smith Mfg. Co
• UPC: 727753379275
• Manufacturer Part Number: 5619 (-SAP)
