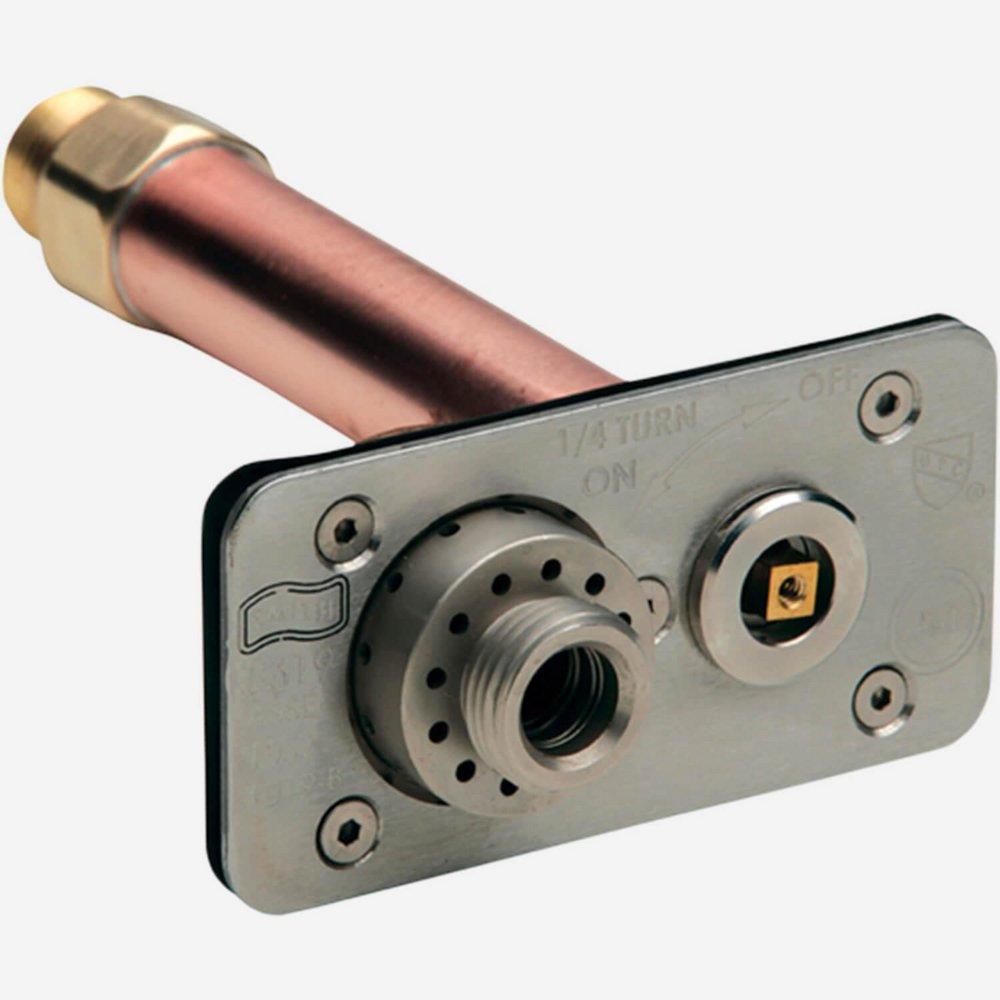

Jay R Smith 5619-12 Wall Hydrant 12 x 1/2 in x 3/4 in

Product Description

The JAY R SMITH 5619-12 is a bronze hydrant with a stainless steel face, designed for commercial construction applications. It features a quarter-turn full-flow mechanism and a self-draining, non-freeze design with a dual check valve and integral vacuum breaker. This hydrant fits flush to building in one standard course brick.

• Quarter-turn full-flow feature
• 3/4" inlet and hose connection
• Removable "T" handle key or ergonomically designed wheel handle

Product Highlights

This hydrant complies with ANSI A112.21.3M and ASSE 1019B & 1052 standards, ensuring reliable performance and safety.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 5619-12

Technical Specifications

• ASSE Standards: ASSE 1019-B, ASSE 1052, ASSE 1053
• Collection: 5619
• Color Finish Name: Bronze
• End Connection 1: FNPT, MNPT
• End Connection 2: GHT
• End Connections: FNPT;MNPT x GHT
• IAPMO Listed: Yes
• Length: 12 in.
• Material: Bronze, Stainless Steel
• NSF Certified: Yes
• Recommended Valve Application: Water
• Sillcock Type: Quarter Turn, Frost-proof
• UL Listed: No
• Valve Disc Material: Ceramic
• Valve Operator: T-Handle
• Valve Size: 1/2 in x 3/4 in
• Inlet Style: 3/4"MPT x 1/2"FPT
• Finish: Bronze
