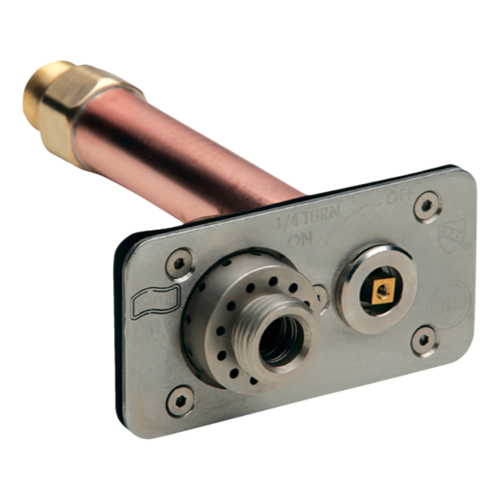

Jay R Smith 5619(-04) Guardian Dual Check Quarter Turn Non-Freeze Wall Hydrant

Product Description

The Jay R Smith 5619(-04) Guardian Dual Check Quarter Turn Non-Freeze Wall Hydrant is designed for use in various building wall applications. It features an integral vacuum breaker that automatically drains, preventing freezing. This hydrant is suitable for both interior and exterior walls where a hose connection is accessible. A simple quarter turn of the key allows for full water flow.

• Guardian Dual Check quarter turn non-freeze wall hydrant
• Automatic draining integral vacuum breaker and dual check valve
• Full flow achievable with a quarter turn of the key

Product Highlights

This product is essential for providing water access without freezing in cold conditions. It is ideal for outdoor installations and offers easy operation.

Product Information

Standard Information

• Brand: Jay R. Smith Mfg. Co.
• Type: Wall hydrant

Technical Specifications

• SKU: 5619-04
• Inlet Style: 3/4 inch MPT x 1/2 inch FPT
• Length: 4 inches
• Finish: Bronze
• Inlet Size: 1/2 or 3/4 inch
• Handle Type: Standard
• Wall Thickness: 4 inches
• Series: Guardian Dual Check
• End Style: MNPT x FNPT
• Material: Bronze
• Nominal Size: 3/4 inch x 1/2 inch
• Specifications: Quarter turn
• Wall Opening Size: 2-1/4 inches x 4 inches
• UPC: 727753397200
• Manufacturer Part Number: 5619 (-04)
