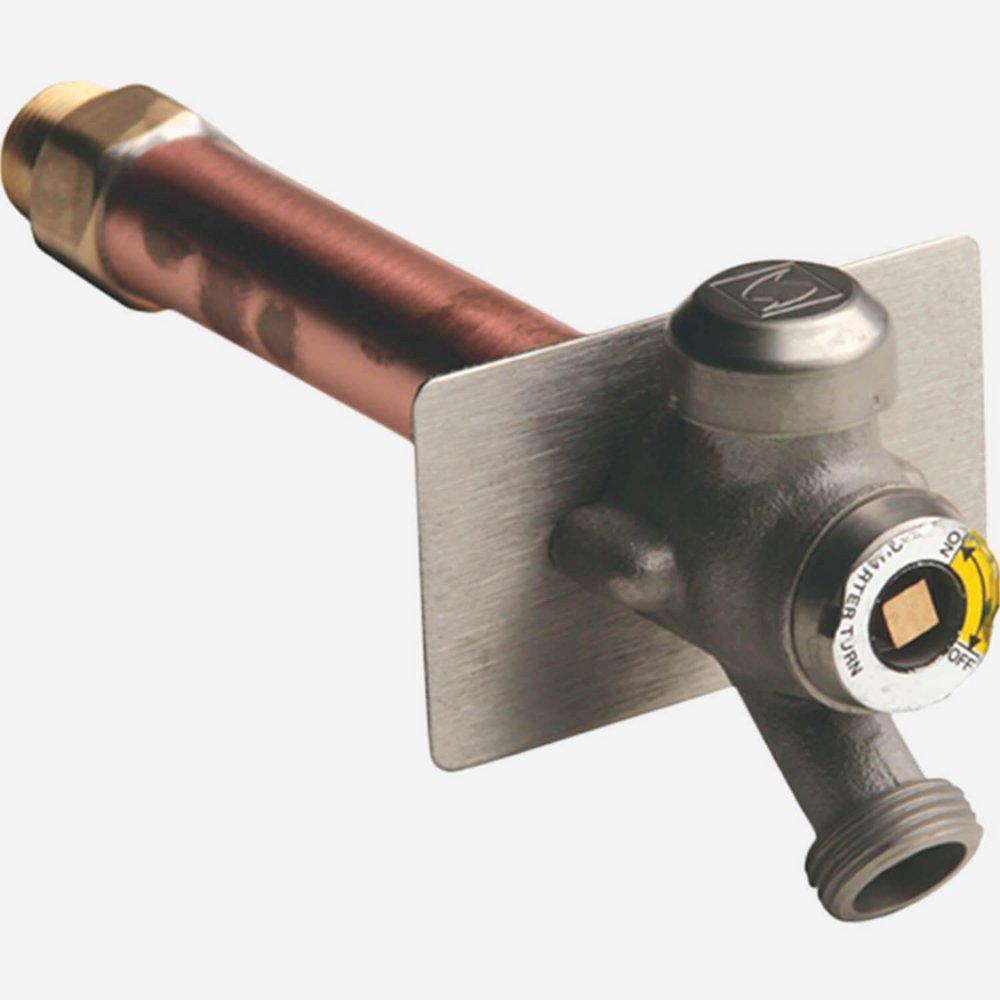

Jay R Smith 5609QT-12NP Non-Freeze Wall Hydrant With Integral Vacuum Breaker 12 inch Wall 3/4 x 1/2 inch Nominal

Product Description

The JAY R SMITH 5609QT-12NP is a non-freeze wall hydrant designed for irrigation purposes. It features a 12 inch wall thickness, 3/4 x 1/2 inch nominal size, and MNPT x FNPT end style, suitable for various wall constructions. This bronze nickel-plated hydrant includes an integral vacuum breaker and a T-handle key for operation, providing positive non-freeze protection.

• Integral vacuum breaker for backflow prevention.
• Non-freeze protection for cold weather conditions.
• Adaptable to various wall constructions.

Product Highlights

Bronze nickel-plated quarter-turn hydrant with 3/4 inch hose connection and backer plate.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 5609QT-12NP
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 5609QT-12NP
• Brand: JAY R SMITH
• End Style: MNPT x FNPT
• Finish: Bronze Nickel
• Handle Type: T-Handle Key
• Material: Bronze
• Nominal Size: 3/4 x 1/2 in
• Series: 5609
• Type: Non-Freeze
• Collection: 5609QT
• End Connection 1: FNPT, MNPT
• End Connection 2: GHT
• NSF Certification: NSF 61-2008
• Recommended Valve Application: Water
• Sillcock Type: Quarter Turn, Frost-proof
• UL Listed: No
• UPC: 727753237636
• Valve Disc Material: Ceramic
