Jay R Smith 5609QT-08 non-freeze hydrant 8 in

Product Description

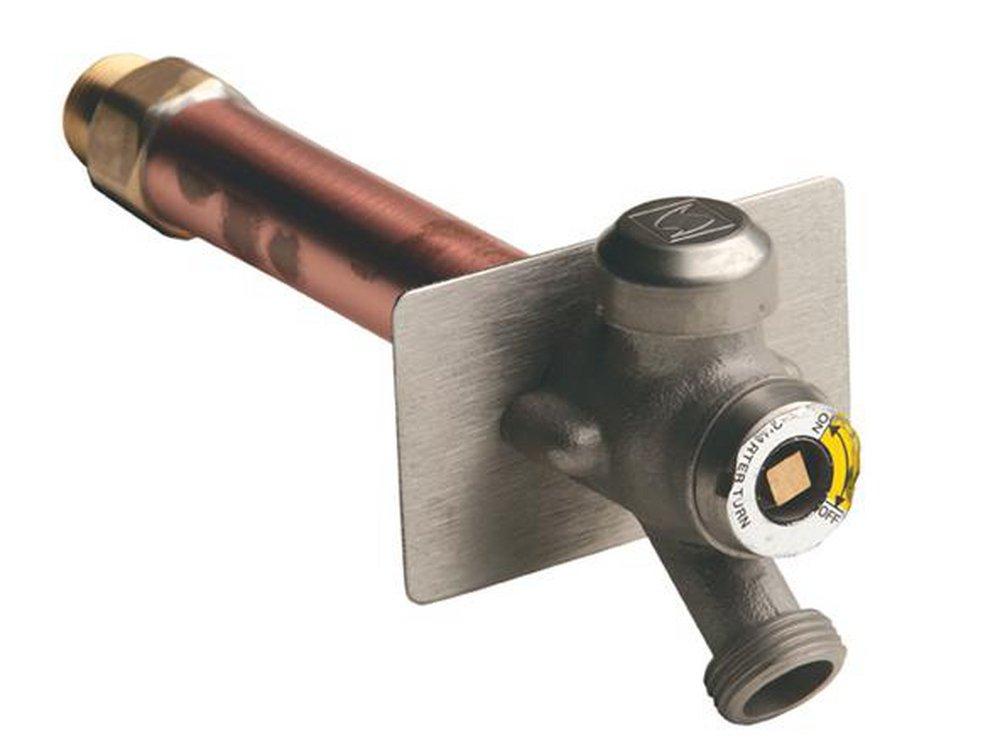

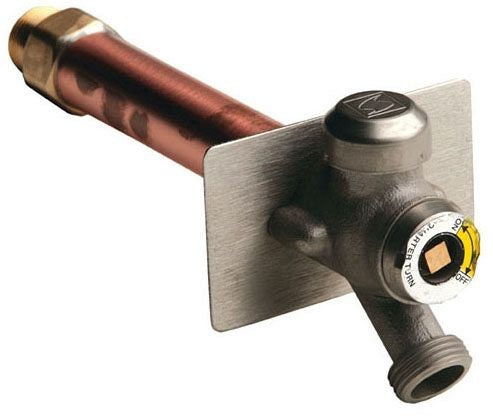

The Jay R Smith 5609QT-08 is a bronze nickel plated quarter turn non-freeze hydrant with a 3/4" hose connection. It provides non-freeze protection where water is required outside of a building and features an integral vacuum breaker. It has a unique inlet fitting consisting of 1/2" FNPT and 3/4" MNPT connection. For irrigation purpose only.

• Unique inlet fitting consists of 1/2" FNPT and 3/4" MNPT connection
• Provides positive non-freeze protection where water is required at the outside of the building and features an integral vacuum breaker
• The stainless steel recessed box conceals the nozzle and operating mechanism

Product Highlights

This quarter-turn hydrant offers non-freeze protection and includes a vacuum breaker and T-handle key.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 5609QT-08

Technical Specifications

• Manufacturer: Jay R Smith
• Part Number: 5609QT-08-BP
• Faucet Type: Wall Hydrant
• Length: 8 in
• Collection: 5609QT
• Color Finish Name: Bronze Nickel
• End Connection 1: FNPT, MNPT
• End Connection 2: GHT
• End Connections: FNPT;MNPT x GHT
• Height: 2-1/2
• Material: Bronze, Stainless Steel
• NSF Certified: Yes
• Sillcock Type: Quarter Turn, Frost-proof
• Valve Operator: T-Handle
• Valve Disc Material: Ceramic
• Valve Seat Material: Stainless Steel
• Valve Size: 1/2 in x 3/4 in
• Width: 4
