Jay R Smith 4031LXH04-NS(-C-F) Drains & Carriers

Product Description

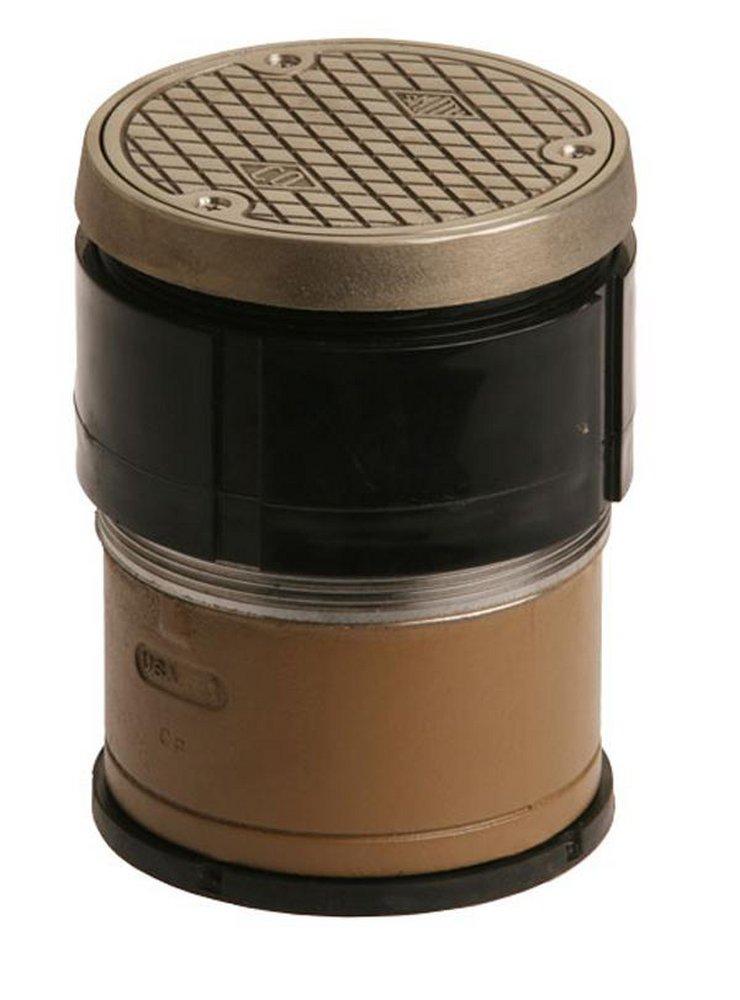

The Jay R Smith 4031LXH04-NS(-C-F) is designed for use in finished floors bearing foot and medium load wheeled traffic, allowing for easy floor level adjustment. It is a Duco cast iron cleanout with a round adjustable scoriated secured nickel bronze top closure plug. It features a Speedi-Set service weight connection type.

• All strainer heads and cleanout tops shipped individually are shrink wrapped in plastic before leaving the factory
• The cover protects the drain/cleanout top during shipping, warehousing and on the job site
• Each protective cover is clearly marked with the product number and the Smith logo

Product Highlights

Duco cast iron cleanout with round adjustable scoriated secured nickel bronze top closure plug. The cover protects the drain or cleanout top during the pour preserving the finish.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 4031LXH04-NS(-C-F)

Technical Specifications

• Cleanout Size: 5-3/4 in
• Connection Type: Speedi-Set Service Weight
• Material: Duco Cast Iron
• Outlet Size: 4 in
• Series: 4031
