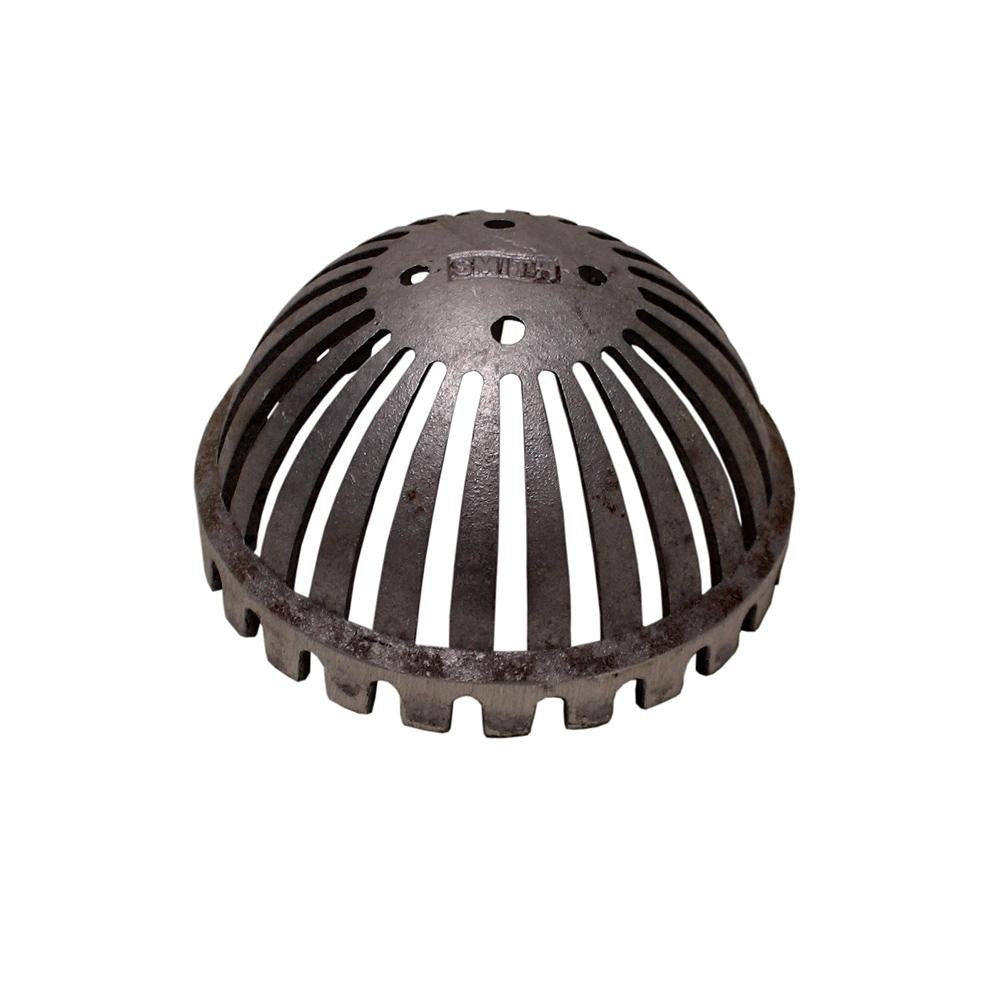

Jay R Smith 3000DBS-2 Bottom Dome Strainer 4-11/16 in

Product Description

The JAY R SMITH 3000DBS-2 is a bottom dome strainer measuring 4-11/16 inches in diameter, designed to capture debris at floor drain and area drain outlets. Dome strainers of this type sit over the drain body opening and prevent solids from entering the waste line while allowing liquid to flow freely. This strainer fits into the drain body from above, making it a field-serviceable component that can be removed for cleaning or replacement without disturbing the drain body itself. Plumbers and facility maintenance technicians are the primary installers for this type of hardware in both new construction and retrofit applications.

This bottom dome strainer is suited for use in commercial and residential floor drain applications where debris interception is required at the drain outlet. Typical installation locations include mechanical rooms, laundry areas, restrooms, food service facilities, and utility spaces. The bottom-mount dome profile keeps the strainer seated securely within the drain body, reducing displacement under traffic or flow conditions.

Key Features

• Bottom-mount dome profile seats securely inside compatible drain bodies
• 4-11/16 inch diameter fits standard drain body openings of that size
• Dome shape promotes flow-through drainage while catching solids
• Field-removable design allows for routine cleaning without disturbing drain body
• Appropriate for commercial and residential floor drain applications

Compatibility

Designed as an OEM-style replacement or service part for floor drain bodies accepting a 4-11/16 inch bottom dome strainer insert. Verify drain body opening diameter before ordering to confirm fit.

Installation Notes

Installation is typically performed by a licensed plumber or experienced maintenance technician. Shut off any upstream flow and ensure the drain area is dry before removing or installing the strainer. Seat the dome strainer fully into the drain body opening and confirm it is stable before returning the drain to service. Follow applicable local plumbing codes and IPC guidelines for floor drain maintenance and debris management.

Technical Specifications

• Strainer Diameter: 4-11/16 inches
• Strainer Type: Bottom Dome

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 3000DBS-2
