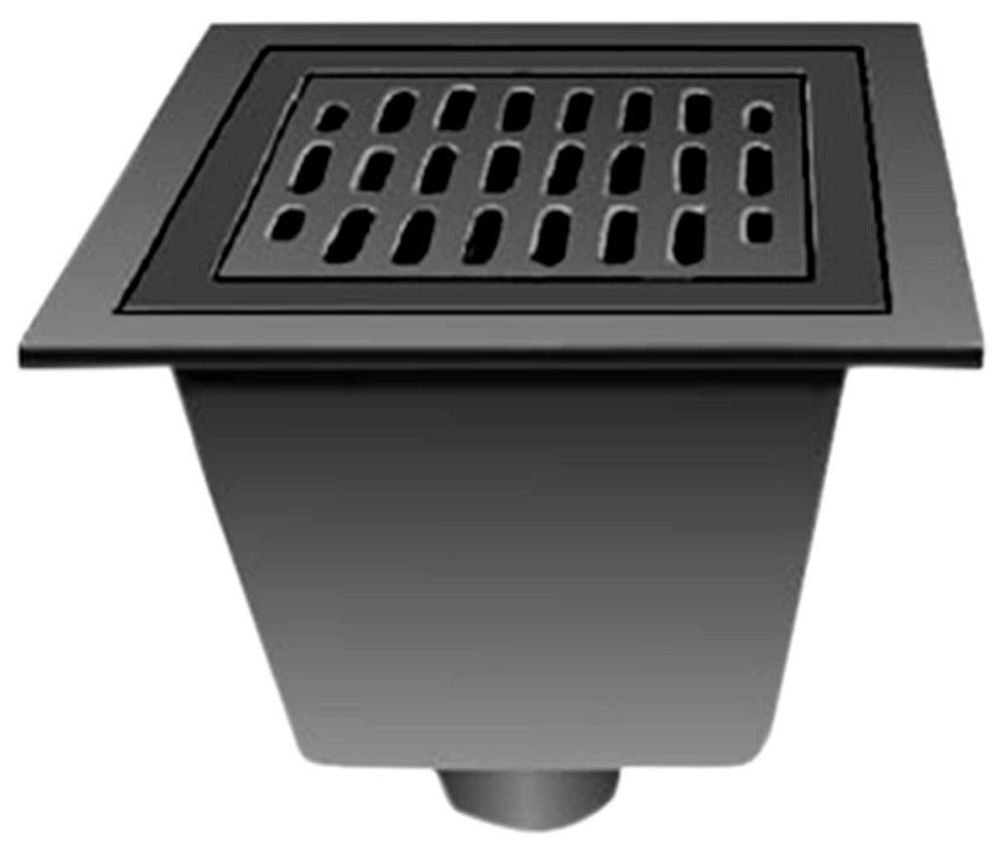

Jay R Smith 2630C04 Floor Drain 4 Inch

Product Description

The JAY R SMITH 2630C04 is a 4-inch floor drain designed for commercial and residential plumbing installations. Floor drains in the 2630 series are typically specified for interior floor drainage applications where positive water evacuation is required. Licensed plumbers and mechanical contractors install this drain as part of a rough-in assembly, connecting it to the building drain system. The 2630C04 is a direct-connection drain fitting suited for slab or below-grade installations where a finished floor drain outlet is needed.

This drain is appropriate for use in mechanical rooms, commercial kitchens, restrooms, laundry areas, and utility spaces where floor-level drainage is required. The 4-inch outlet size accommodates standard drain line connections and is commonly specified on commercial plumbing plans and residential utility projects.

Key Features

• 4-inch drain body size for standard floor drain rough-in applications
• Part of the JAY R SMITH 2630 series floor drain line
• Sized for connection to standard 4-inch drain piping systems
• Suitable for slab-on-grade and below-floor drain installations

Compatibility

Designed as an OEM-style replacement or new-construction fitting for standard 4-inch floor drain assemblies in commercial and residential plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). The water supply and drain system should be depressurized and isolated before beginning any drain rough-in work. Ensure proper slope to drain per code requirements and verify that the drain body is set to the correct finished floor elevation before pouring or setting the surrounding slab material.

Technical Specifications

• Drain Size: 4 inches
• Series: 2630
• UPC: 727753157798

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 2630C04
