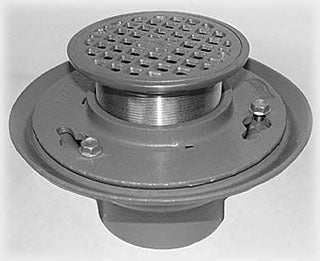

Jay R Smith 2005Y02(-A06NB-P050-U) Floor Drain Vandal Proof

Product Description

The JAY R SMITH 2005Y02(-A06NB-P050-U) is a 2-inch Y-pattern floor drain assembly configured with a 6-inch nickel bronze strainer, a 0.5-inch trap primer connection (TPC), and a vandal-proof top. The Y-pattern body design allows the drain to be installed at an angle, making it well suited for retrofit applications or areas where vertical stack alignment is constrained. Plumbing contractors and commercial plumbing crews install this drain where durability and security are required. The nickel bronze strainer and vandal-proof feature resist tampering and stand up to heavy foot traffic environments.

This floor drain is intended for commercial and institutional plumbing installations such as restrooms, locker rooms, kitchens, mechanical rooms, and similar wet areas that see regular foot traffic. The trap primer connection helps maintain the water seal in the P-trap, preventing sewer gas intrusion in areas where the drain may go extended periods without use. The vandal-proof configuration is appropriate for public or semi-public facilities where standard strainer tops are susceptible to removal or damage.

Key Features

• 2-inch Y-pattern body allows angled installation for retrofit or constrained rough-in conditions
• 6-inch nickel bronze (-A06NB) strainer provides corrosion resistance and a finished appearance
• 0.5-inch trap primer connection (-P050) maintains P-trap water seal in low-use areas
• Vandal-proof top (-U) resists unauthorized removal in public or institutional settings
• Modular suffix configuration allows field identification of exact assembly components

Compatibility

Designed as an OEM-style commercial floor drain for use in IPC-compliant plumbing systems requiring a 2-inch drain body with trap primer supply and a secured, corrosion-resistant strainer top.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local amendments. Shut off the water supply and verify the drain rough-in size matches the 2-inch body before setting the drain in the slab. The trap primer connection must be plumbed to an approved water supply line to function correctly. Do not overtighten the strainer fasteners, as nickel bronze components can be damaged by excessive torque.

Technical Specifications

• Drain Body Size: 2 inches
• Body Pattern: Y-pattern
• Strainer Diameter: 6 inches
• Strainer Material: Nickel Bronze
• Trap Primer Connection Size: 0.5 inches
• Top Style: Vandal Proof
• UPC: 727753092020

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 2005Y02(-A06NB-P050-U)
