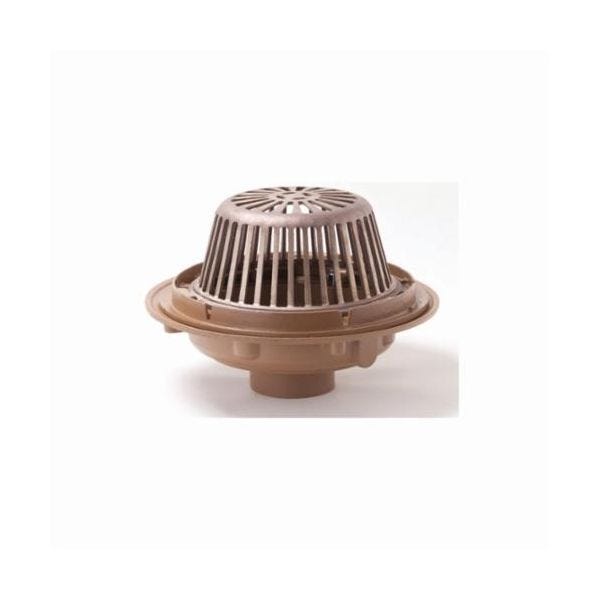

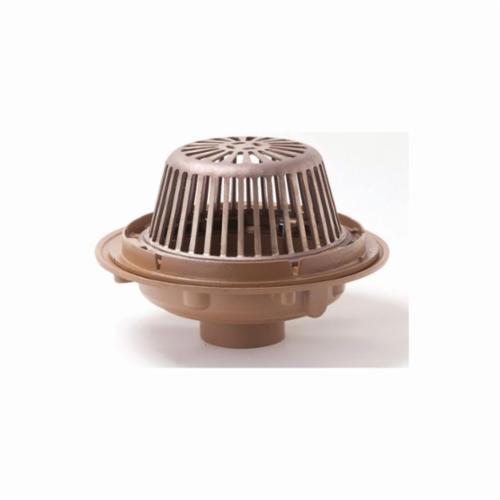

JAY R SMITH 1010Y04 Bottom Roof Drain 4 in Outlet No-Hub Connection

Product Description

The JAY R SMITH 1010Y04 is a bottom roof drain designed for use on flat roofs. This drain features a large, low-profile dome that allows for efficient drainage, preventing the accumulation of water and protecting the drain sump from debris. The design includes a no-hub connection and a 4-inch outlet for easy installation.

• No-hub connection type for straightforward installation.
• Cast iron body ensures durability and long-lasting performance.
• Low-profile dome offers a free area of one hundred two point five square inches for quick drainage.

Product Highlights

This roofing drain is suited for various building types and helps effectively manage water runoff on flat roofs.

Product Information

Standard Information

• Brand: JAY R SMITH
• Connection Type: No-Hub

Technical Specifications

• Dimensions: fifteen and one-quarter inches diameter
• Drain Material: Cast Iron
• Outlet Size: four inches
• Series: 1010
• Type: Bottom
• Adjustable: No
• Collection: 1010 Series
• Drain Base Height: five inches
• Drain Base Width: fifteen and one-quarter inches
• Drain Grate Material: Cast Iron
• End Connection 1: No Hub
• Fits Pipe Size: four inches
• IAPMO Listed: No
