Jay R. Smith 1010Y04 4x15-1/4 in. No-Hub Roof Drain Body Only

Product Description

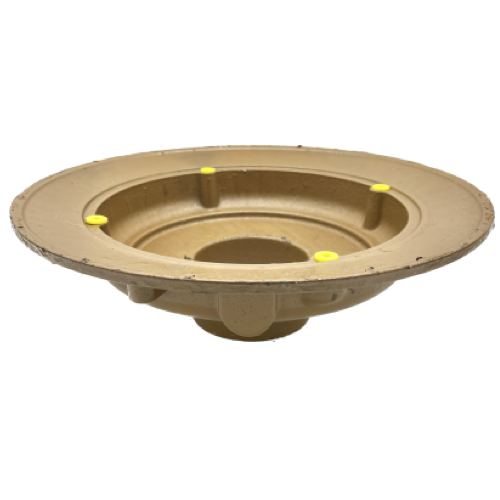

The Jay R. Smith 1010Y04 Roof Drain Body is a cast iron drainage component designed for use in flat roof drainage systems. This unit features a 4 inch outlet with a no hub connection, allowing integration with compatible drainage piping assemblies.

Part of the Jay R. Smith 1010 series, the drain body is engineered to collect and channel rainwater from roof surfaces into the building’s storm drainage system. The cast iron construction supports structural durability and long term performance in commercial and industrial roofing installations.

The drain body measures approximately 15-1/4 inches in diameter and is designed to work with compatible dome strainers, flashing clamps, and roof drain accessories as part of a complete roof drainage assembly. :contentReference[oaicite:1]{index=1}

Product Highlights

• Roof drain body designed for commercial roof drainage systems

• 4 inch outlet with no hub connection

• Durable cast iron construction

• Compatible with Jay R. Smith 1010 series drain components

• Designed for installation in flat roof drainage applications

Product Information

Standard Information

• Brand: Jay R. Smith

• MPN: 1010Y04

Technical Specifications

• Outlet Size: 4 inch

• Connection Type: No Hub

• Drain Material: Cast Iron

• Body Diameter: Approximately 15-1/4 inches

• Drain Type: Bottom outlet roof drain

Application

• Installation Area: Flat or low slope roof systems

• Function: Collects and directs rainwater from roof surfaces to drainage piping

• Typical Use: Commercial, industrial, and institutional roofing systems

Service and Installation

• Installation: Installed in roof deck and connected to compatible no hub drainage piping

• Assembly: Used with dome strainers, flashing clamps, and other roof drain components

• Maintenance Role: Supports efficient roof drainage and helps prevent water accumulation
