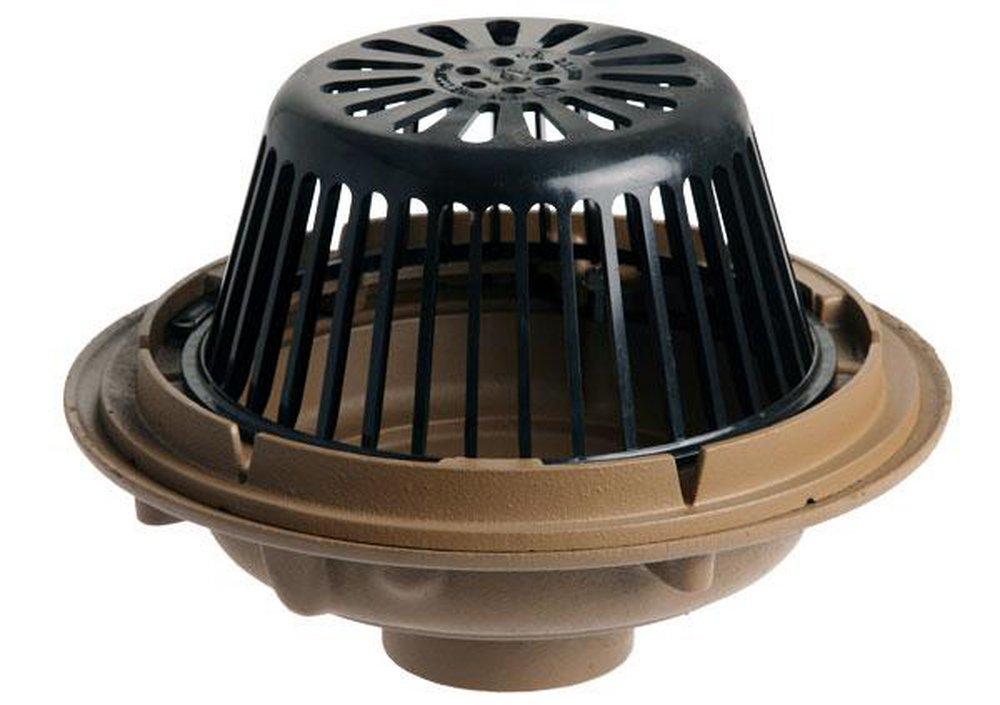

Jay R Smith 1010Y03 3 inches Nh 15-1/4 Flg Large General Purpose Roof Drain Jrsmith

Product Description

The JAY R SMITH 1010Y03 is a 3" roof drain designed for use in flat roofs of any construction. The large, low-profile dome provides sufficient free area for quick drainage of rainwater and protects the drain sump and connected piping from debris intrusion. The wide clamping surface securely holds flashing and roofing materials without puncturing.

• Used in flat roofs of any construction
• Large low profile dome provides sufficient free area for quick drainage of rain water and protects the drain sump and connected piping from the intrusion of debris
• Wide clamping surface holds flashing and roofing materials without puncturing

Product Highlights

This roof drain features a cast iron drain base, a no-hub connection, and a plastic dome. It is suitable for use in various roofing applications.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 1010Y03
• Country of Origin: United States

Technical Specifications

• Brand: JAY R SMITH
• MPN: 1010Y03
• Category: Business & Industrial
• Country of Origin: United States
• Adjustable: No
• Collection: 1010 Series
• Construction: Non-Membrane
• Drain Base Height: 5
• Drain Base Material: Cast Iron
• Drain Base Width: 15-1/4
• Drain Grate Material: Plastic
• End Connection 1: No Hub
• Fits Pipe Size: 3 in
• Connection Type: No-Hub
• Drain Material: Cast Iron
• Manufacturer: Jay R. Smith Mfg. Co
• Manufacturer #: 1010Y03
• Outlet Size: 3 in
• Series: 1010
• Type: Bottom
