Jay R Smith 1010DPK Deck Pan Kit

Product Description

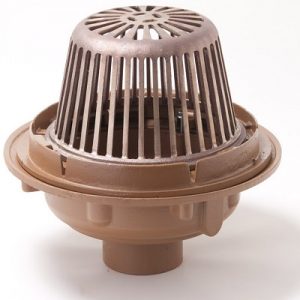

The Jay R. Smith 1010DPK roof drain and deck pan kit is ready to install. It includes a bottom outlet roof drain with a bowl flange, deck pan, no-hub coupling, and hardware. The deck plate mounts the roof drain at deck level, eliminating the need for an underdeck clamp. Available in 2 to 12 inch pipe sizes.

• Includes one bottom outlet roof drain with a 15-1/2", 16" or 20" diameter bowl flange, deck pan, no-hub coupling and hardware
• Available in 2" in to 12" pipe sizes
• Fabricated from stout 18 gauge galvanized steel

Product Highlights

The Jay R. Smith 1010DPK includes a roof drain, deck pan, and hardware for easy installation. It features a galvanized steel deck plate and a dura-coated cast iron body.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 1010DPK

Technical Specifications

• Body Material: Dura-Coated cast iron
• Deck Plate Material: 18 gauge galvanized steel
• Outlet Connection: No-hub
• Pipe Sizes: 2" to 12"
