Jason Industrial 5L950 V-Belt 95 Inch Outside Length B/5L Section

Product Description

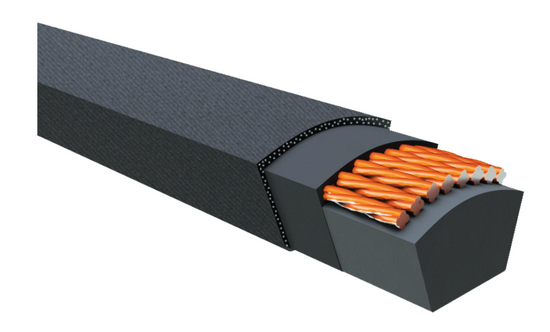

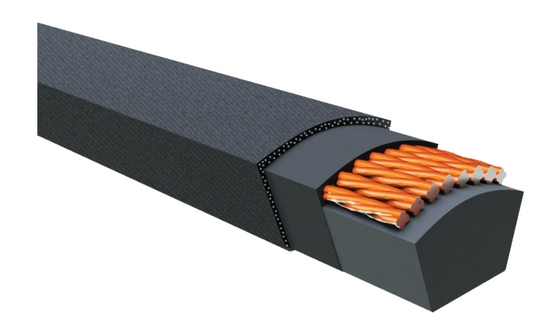

Jason Industrial 5L950 is a B/5L section V-belt designed for industrial power transmission applications with a 95 inch outside length. The belt is constructed from a natural rubber/SBR compound with a polyester cord and cotton/polyester cover, using unimatch construction and conforming to ARPM standards. It provides dimensional specifications of 21/32 inch top width and 13/32 inch thickness for use in drive systems and conveyors.

• Natural rubber/SBR compound with polyester cord and cotton/polyester cover
• Dimensions: 95 inch outside length; 21/32 inch top width; 13/32 inch thickness; item weight 1.13 pounds
• Unimatch construction; conforms to ARPM standards for industrial power transmission

Product Highlights

B/5L section V-belt, 95 inch outside length, unimatch construction, ARPM compliant

Product Information

Standard Information

• Brand: JASON INDUSTRIAL
• Manufacturer Part Number: 5L950

Technical Specifications

• Brand: Jason Industrial
• MPN: 5L950
• Alternate Part Number: B92
• Section: B / 5L
• Outside Length: 95 inches (outside length)
• Top Width: 21/32 inch (0.65625 inch)
• Thickness: 13/32 inch (0.40625 inch)
• Compound: Natural rubber / SBR
• Cord Material: Polyester
• Cover Material: Cotton/polyester blend
• Construction: Unimatch
• Standards: Conforms to ARPM standards
• Item Weight: 1.13 Pounds
• Item Dimensions: 95" L x 0.65625" W x 0.40625" H (outside length x top width x thickness)
