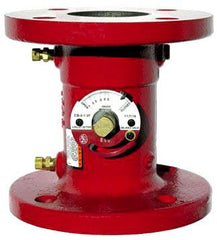

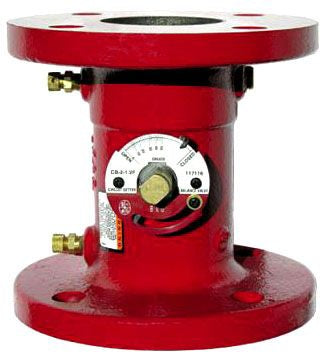

James M Pleasants BG_117116 Circuit Setter 2.5 in Female

Product Description

The JAMES M PLEASANTS BG_117116 is a 2.5-inch female-connection circuit setter designed for hydronic balancing applications in commercial and residential heating and cooling systems. Circuit setters allow technicians to measure and regulate flow rates through individual circuits in a piping system, ensuring each zone receives the correct flow for efficient system operation. This type of valve is typically installed by licensed plumbers or HVAC pipefitters during system commissioning or when rebalancing an existing hydronic loop.

The BG_117116 circuit setter is suited for hydronic piping systems where precise flow balancing is required across multiple branches or zones. It is commonly installed on supply or return lines in chilled water, hot water heating, and variable-flow hydronic distribution systems. The 2.5-inch female end connection makes it compatible with standard threaded pipe configurations found in light commercial and larger residential mechanical systems.

Key Features

• 2.5-inch female end connection for standard threaded pipe installation
• Circuit setter design enables flow measurement and regulation in hydronic systems
• Supports system commissioning and rebalancing without full system shutdown
• Compact ball-valve style body suitable for tight mechanical room installations

Compatibility

Designed as an OEM-style replacement or new-installation circuit setter for 2.5-inch threaded hydronic piping systems. No specific model compatibility data was provided with this SKU.

Installation Notes

Installation should be performed by a licensed plumber or HVAC pipefitter familiar with hydronic system balancing procedures. Shut down and depressurize the affected piping circuit before installation and verify the system is fully drained or isolated to prevent water discharge. Follow local plumbing codes and manufacturer torque guidance for threaded connections. A flow meter or differential pressure gauge is typically used in conjunction with circuit setters during commissioning to verify target flow rates.

Technical Specifications

• Connection Size: 2.5 inches
• Connection Type: Female (threaded)
• Valve Type: Circuit Setter
• UPC: 683328171166

Standard Information

• Brand: JAMES M PLEASANTS
• Manufacturer Part Number: BG_117116
