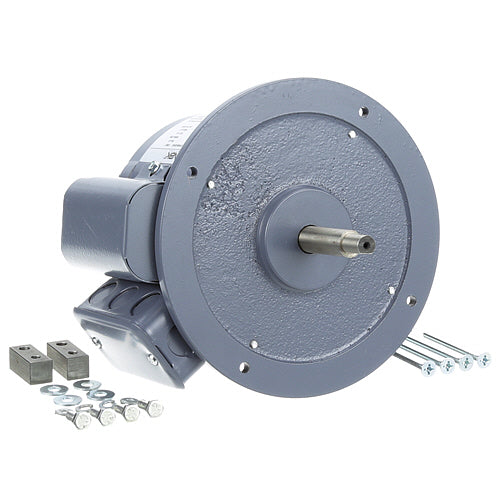

MOTOR 115V 1/4HP 56YZ FRAME 840011900 for Jade Range JAD840011900

Product Description

This item for Jade Range MPN 840011900 is a motor designed for various applications. This motor operates at a voltage of one hundred fifteen volts and has a speed of one thousand seven hundred twenty-five revolutions per minute. It features a quarter horsepower and a fifty-six YZ frame, making it suitable for specific equipment needs.

• Voltage: 115V
• Speed: 1725 RPM
• Horsepower: 1/4HP

Product Highlights

This motor is intended for use in models JSR-22C and JTRH, providing reliable performance. The shaft measures three and one-eighth inches long and is turned down with a half-inch flat side. There are several mounting holes for easy installation and stability.

Product Information

Standard Information

• Weight: 19.1 lbs
• Dimensions: 12.5 inches (length) x 12 inches (width) x 14.5 inches (height)

Technical Specifications

• Frame Type: 56YZ
• Shaft Length: 3-1/8 inches
• Mounting Holes: 4
• Center Measurements: 5-1/16 inches
• Installation: 1/4-20 THD hole
• Notes: Compatible with multiple blower wheels
