Jacobs chuck JCM6295 heavy duty drill chuck

Product Description

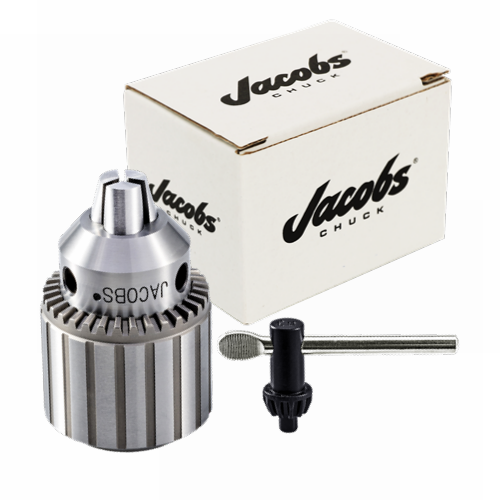

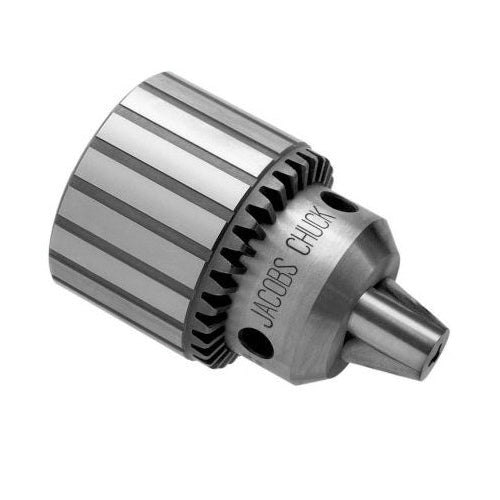

The Jacobs Chuck JCM6295 is a heavy-duty drill chuck ideal for industrial drilling and lathe operations. This chuck employs a Jacobs Taper mount and features a capacity of zero point zero four to zero point five inches. It includes a K3 key and has center-ground jaws for precise alignment. The design incorporates a one-piece sleeve for added strength and reliability.

• Capacity of zero point zero four to zero point five inches
• Jacobs Taper mounting type with six JT size
• Plain bearing design for durability

Product Highlights

This drill chuck is perfect for those needing a robust solution for various drilling tasks. Its precision alignment and sturdy build make it suitable for a wide range of applications.

Product Information

Standard Information

• Brand: Jacobs Chuck
• Model Number: JCM6295

Technical Specifications

• Type: Heavy Duty
• Capacity: 0.04 to 0.5 inches
• Key Number: K3
• Bearing Type: Plain
• Closed Length: 3.52 inches
• Open Length: 2.74 inches
• Outside Diameter: 2.04 inches
• Chuck Capacity: 0.04 to 0.5 inches (1-13mm)
