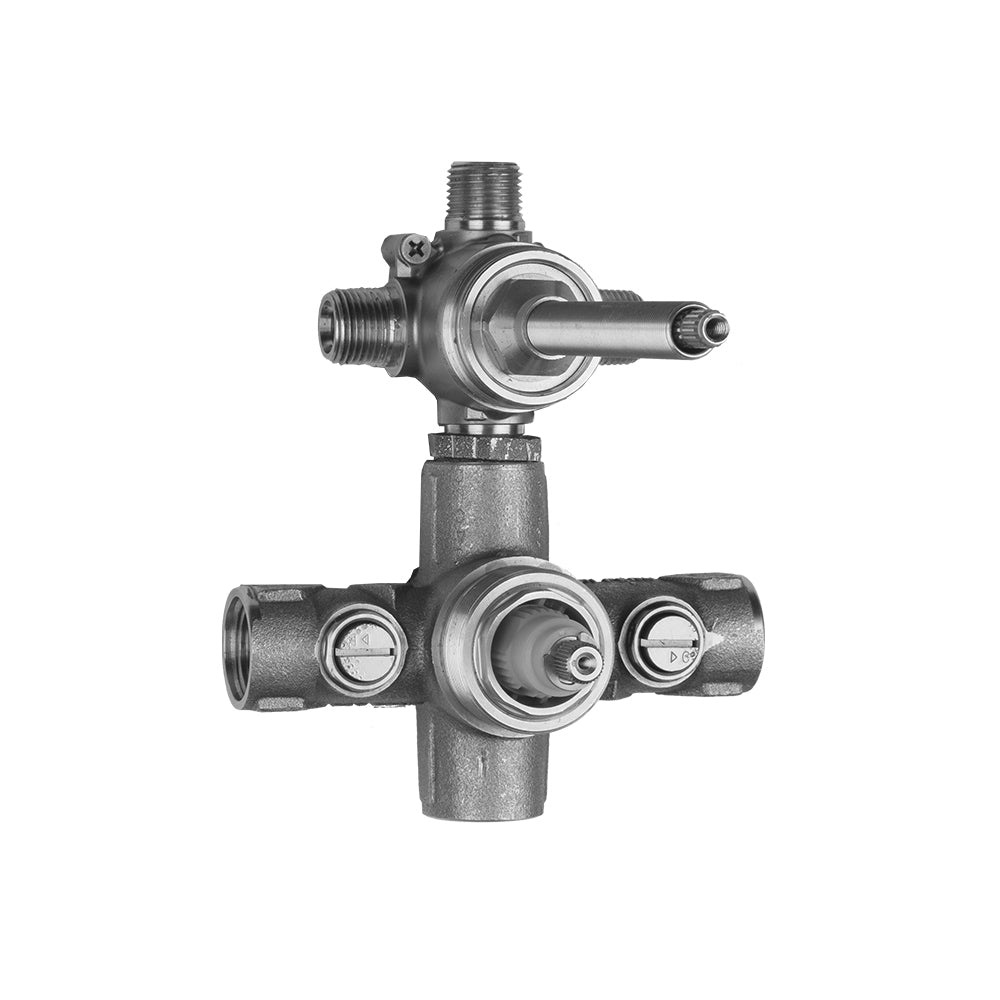

Jaclo J-TH34-689 Thermo Valve W/3 Way Shared Diverter

Product Description

The JACLO J-TH34-689 thermo valve features a 3-way shared diverter. This thermostatic valve maintains a constant water temperature automatically, regardless of incoming hot and cold water pressure. It has a 12 gpm flow rate at 60 psi and works well with low water pressure. Dimensions are 7-7/16 in L x 5-3/4 in W x 6-7/8 in H.

• Features a thermostatic valve with built-in diverter/shut-off for easier installation
• Top valve is a three way diverter that consists of inlet for water, two outlets and a shared function
• Bottom valve is a thermostatic mixing valve that maintains a constant water temperature automatically

Product Highlights

This thermostatic valve with built-in diverter offers anti-scald protection and a clean appearance. It includes 1/2 in MNPT ports diverter and 3/4 in FNPT ports thermostatic.

Product Information

Standard Information

• Brand: JACLO
• Manufacturer Part Number: J-TH34-689

Technical Specifications

• MPN: J-TH34-689
• Brand: JACLO
• Connection Type: NPT
• Flow Rate: 12 gpm
• Nominal Size: 1/2 x 3/4 in
• Number of Ports/Ways: 3-Way
• Series: J-TH34-689 Series
