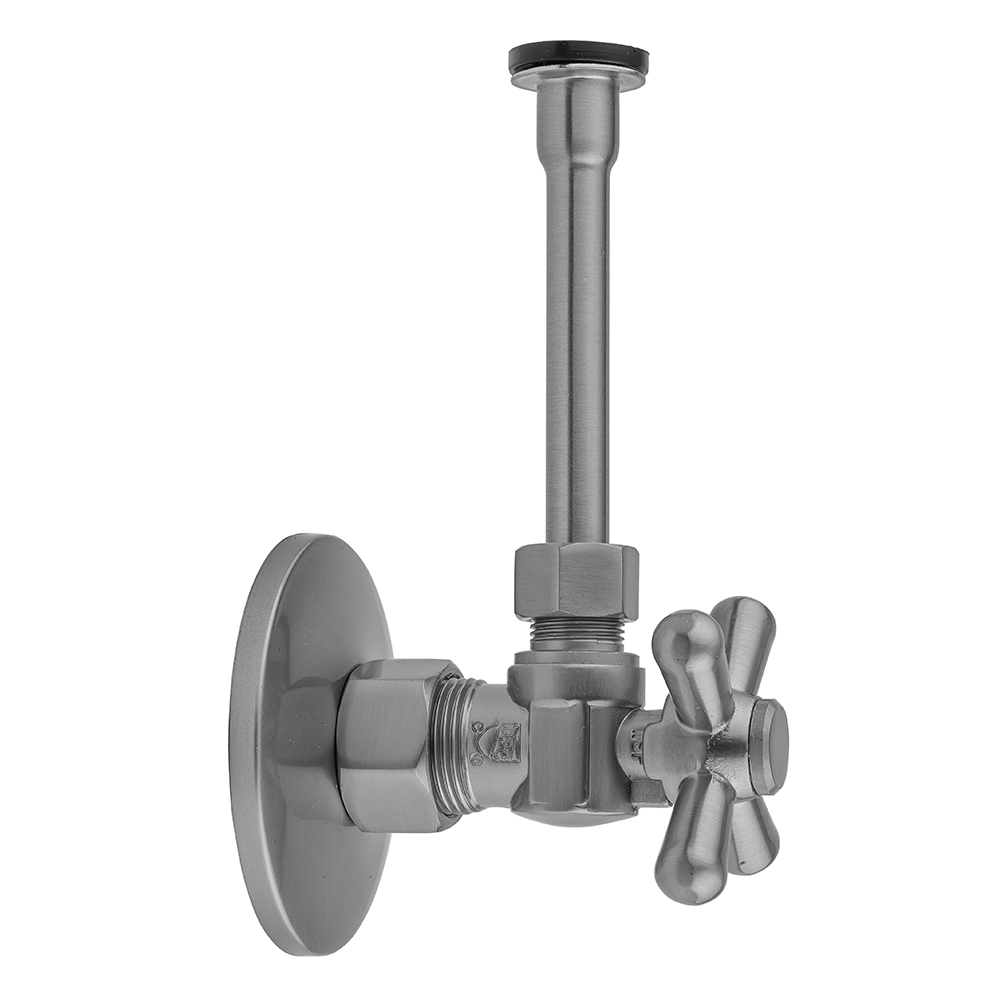

Jaclo 621-72-WH Toilet Supply Kit 20 Inch Cross Handle White

Product Description

The JACLO 621-72-WH is a quarter turn angle pattern toilet supply kit designed for residential bathroom rough-in and fixture connections. The valve features a 5/8 inch O.D. compression inlet sized to fit 1/2 inch copper supply lines and a 3/8 inch O.D. outlet connection to the toilet fill valve. The kit includes a standard cross handle, a 20 inch supply tube, and an escutcheon plate, all finished in White. Quarter turn operation gives a full open-to-close rotation of 90 degrees, reducing wear compared to multi-turn valves. Licensed plumbers and experienced DIYers install this kit during toilet rough-in, replacement, or fixture upgrade work.

This kit is suited for standard residential toilet installations where the supply stub-out is 1/2 inch copper. The angle stop configuration routes the supply line from a wall-mounted stub-out down to the toilet tank inlet at a 90-degree turn. The included 20 inch supply tube and escutcheon cover the wall penetration for a finished appearance. The White finish coordinates with standard white toilet and fixture trim in residential bathrooms.

Key Features

• Quarter turn ball-style operation for fast, reliable shutoff
• 5/8 inch O.D. compression inlet fits 1/2 inch copper supply pipe
• 3/8 inch O.D. outlet sized for standard toilet fill valve connections
• Includes 20 inch supply tube for direct toilet tank hookup
• Standard cross handle for easy manual operation
• Escutcheon included for a clean wall finish

Compatibility

Designed as an OEM-style replacement or new-installation angle stop for residential toilets with 1/2 inch copper wall supply stub-outs and 3/8 inch O.D. toilet fill valve inlets.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and the IPC. Shut off the main water supply and relieve line pressure before removing any existing stop valve or supply tube. Hand-tighten compression fittings first, then snug with a wrench — do not overtighten, as this can crack compression sleeves or damage the fitting seat. Inspect all connections for leaks after restoring water pressure.

Technical Specifications

• Inlet Connection: 5/8 inch O.D. compression (fits 1/2 inch copper)
• Outlet Connection: 3/8 inch O.D.
• Valve Pattern: Quarter turn angle
• Supply Tube Length: 20 inches
• Handle Style: Standard cross handle
• Finish: White (WH)
• Includes: Stop valve, supply tube, escutcheon
• UPC: 020111360886

Standard Information

• Brand: JACLO
• Manufacturer Part Number: 621-72-WH
