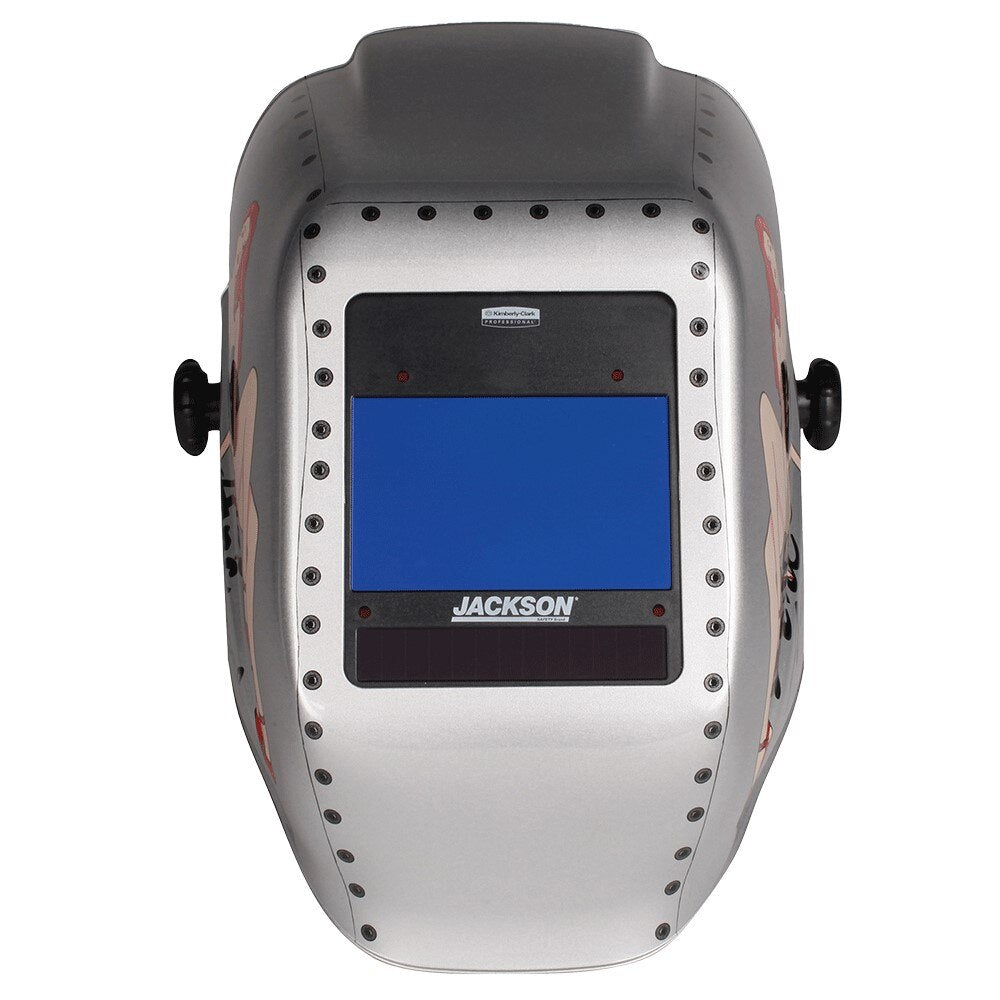

Jackson Safety 46152 Nexgen Arc Angel Welding Helmet Adf

Product Description

The JACKSON SAFETY 46152 NexGen Arc Angel is an auto-darkening filter (ADF) welding helmet designed for professional welders working in MIG, TIG, and stick welding applications. Built around the HSL 100 auto-darkening lens system, it uses four independent sensors to detect arc strikes and shift the lens shade automatically. Two replaceable solar-lithium batteries power the system, extending service life between replacements. The variable shade range runs from 9 to 13, covering light tack welds through high-amperage passes. The amber lens includes both sensitivity and delay adjustment controls, giving the operator fine-tuned control over arc detection and shade transition timing.

This helmet is suited for professional welding environments including fabrication shops, structural work, and maintenance welding. The HLX (Halo-X) headgear system is included. The large viewing window at 3.8 inches x 2.35 inches is positioned to reduce the risk of arc blockage during active welding. The amber lens tint improves contrast and clarity of the weld puddle, which is particularly useful during precision TIG passes or when working with stainless and aluminum base metals.

Key Features

• Auto-darkening filter with variable shade range from 9 to 13
• Four independent arc sensors for reliable detection across wide welding angles
• Large viewing field of 3.8 inches x 2.35 inches to reduce blockage risk
• Amber lens with sensitivity and delay adjustments for task-specific tuning
• Dual replaceable solar-lithium batteries for extended operational life
• Includes HLX (Halo-X) headgear for adjustable fit and stability

Compatibility

Designed as an OEM-configuration ADF welding helmet compatible with the JACKSON SAFETY NexGen Arc Angel product line; includes the HLX Halo-X headgear assembly as configured from the factory.

Installation Notes

Fitting and adjustment should be performed by the welder prior to beginning any welding task. Power down or remove batteries before servicing the ADF lens cartridge or replacing batteries. Verify shade and sensitivity settings match the welding process and amperage before striking an arc. Helmet use and eye protection requirements may be governed by ANSI Z87.1 and applicable employer safety programs.

Technical Specifications

• Lens Shade Range: 9 to 13 (variable, auto-darkening)
• Viewing Field: 3.8 inches x 2.35 inches
• Sensor Count: 4 independent arc sensors
• Lens Tint: Amber
• Power Source: Solar-lithium battery (2 replaceable)
• Headgear: HLX Halo-X
• UPC: 626053606640
• Sold As: Each

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 46152
