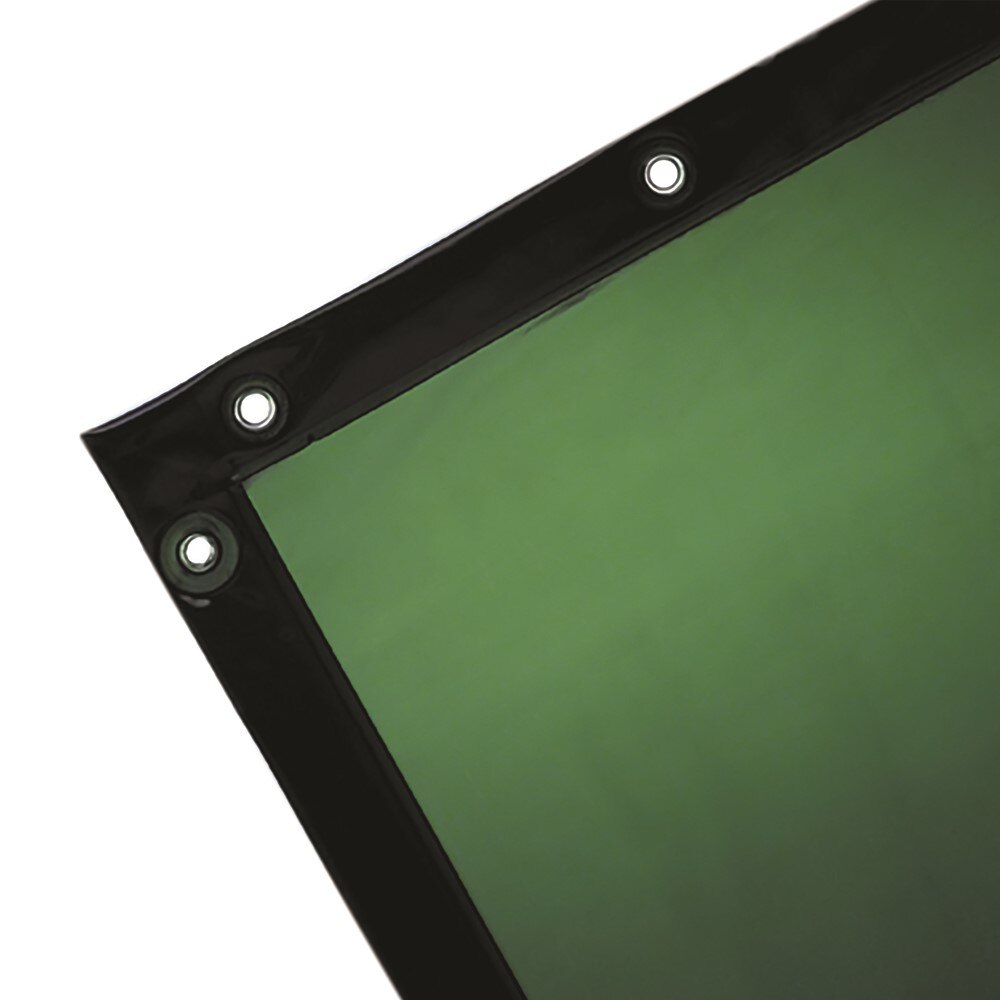

Jackson Safety 36315 See-thru Welding Curtain 8 Ft

Product Description

The JACKSON SAFETY 36315 is a see-through welding curtain designed to protect nearby workers and bystanders from weld flash, spatter, and UV radiation while maintaining a clear line of sight into the work area. Constructed from transparent green vinyl at 0.014 inches thick, this curtain provides a reliable barrier in busy fabrication and welding environments. The 8-foot width covers a wide work zone and can be suspended from standard curtain frames or overhead track systems. Welding instructors, shop foremen, and safety officers specify this type of curtain where visual supervision of the weld area is required alongside personnel protection.

This curtain is suited for use in metal fabrication shops, manufacturing floors, training facilities, and maintenance bays where multiple welders operate in proximity. The see-through green vinyl allows supervisors and co-workers to monitor activity within the welding zone without entering the hazard area. It is appropriate for use with MIG, TIG, and stick welding processes where arc flash and spatter containment are required.

Key Features

• See-through transparent green vinyl allows visual access to the weld zone while blocking arc flash
• 8-foot width provides broad coverage across large work areas or bay openings
• 0.014-inch vinyl thickness balances flexibility with durability for high-cycle shop environments
• Lightweight at 0.81 pounds for straightforward handling and repositioning
• Designed for use as a single curtain panel or as part of a modular curtain system

Compatibility

Designed as an OEM-style replacement or supplemental panel for standard welding curtain frame and track systems used in industrial and commercial welding environments.

Installation Notes

Welding curtains of this type are typically installed by safety personnel or maintenance technicians using curtain frame hardware, grommets, or overhead track systems. Ensure the curtain is suspended at a height that fully covers the weld arc from the floor to the attachment point. Inspect the vinyl periodically for burns, tears, or degradation that could compromise flash protection. Follow applicable OSHA 29 CFR 1910.252 guidelines for welding area protection when positioning curtains.

Technical Specifications

• Width: 8 feet
• Thickness: 0.014 inches
• Material: Transparent Vinyl
• Color: Green
• Weight: 0.81 pounds

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 36315
