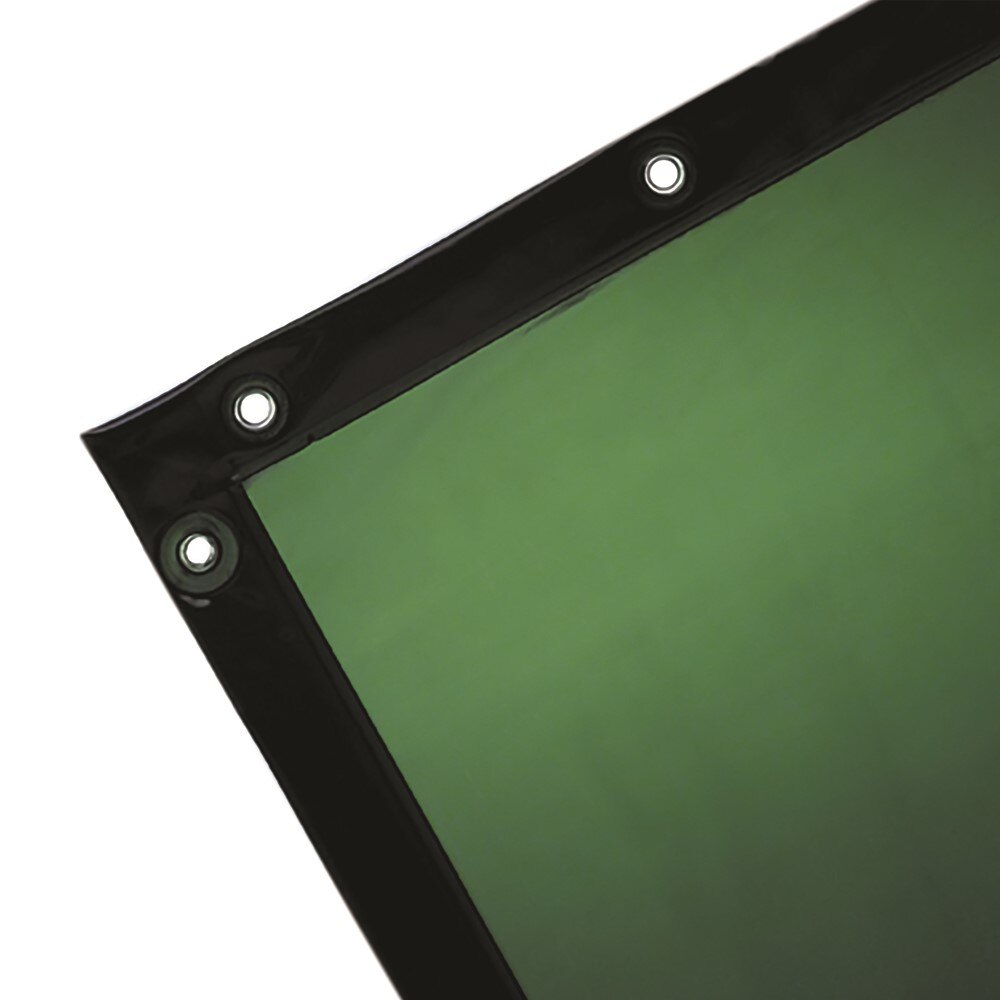

Jackson Safety 36299 Welding Curtain See-thru 6 Ft

Product Description

The JACKSON SAFETY 36299 is a see-through welding curtain designed to shield bystanders and adjacent work areas from weld flash, spatter, and arc glare without blocking sightlines. Constructed from transparent green vinyl at 0.014 inches thick, it provides a visual barrier that meets typical shop safety requirements while allowing supervisors and coworkers to monitor activity through the curtain. At 6 feet wide and weighing 0.81 pounds, it is lightweight enough for quick repositioning between jobs. Welders, fabricators, and safety coordinators in metal fabrication shops, maintenance facilities, and industrial plants are the primary installers and users.

This curtain is suited for use in welding bays, production floors, and maintenance areas where arc flash containment is required without fully obstructing visibility. The see-thru vinyl construction is especially practical in shared workspaces where line-of-sight communication or supervision must continue during welding operations. It can be used as a standalone divider or as part of a larger curtain wall system depending on the application.

Key Features

• Transparent green vinyl construction allows visibility through the curtain while blocking arc flash exposure
• 0.014 inch thickness provides flexible handling and durable spatter resistance for routine shop use
• 6 ft wide panel covers a broad work zone with a single curtain section
• Lightweight at 0.81 pounds, making repositioning and storage straightforward
• Sold as a single unit, suitable for modular curtain wall configurations

Compatibility

Designed for use as a general-purpose welding area divider curtain in fabrication shops, industrial maintenance facilities, and similar environments requiring arc flash and spatter containment.

Installation Notes

Welding curtains are typically hung from overhead curtain tracks, grommets, or rod systems and should be positioned to fully enclose the weld zone perimeter. Ensure the curtain is secured so it cannot shift into the arc or contact hot workpieces during operation. OSHA 1910.252 and ANSI Z49.1 provide guidance on welding area safety screening requirements. Inspect the curtain regularly for spatter damage, tears, or discoloration that could reduce its protective effectiveness.

Technical Specifications

• Width: 6 ft
• Thickness: 0.014 inches
• Material: Transparent Vinyl
• Color: Green
• Weight: 0.81 pounds
• UPC: 626053605810

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 36299
