Jackson Safety 23607 Large Centering Head 360-degree Dial (2.5-degree Increments) Replacement 23608/23610

Product Description

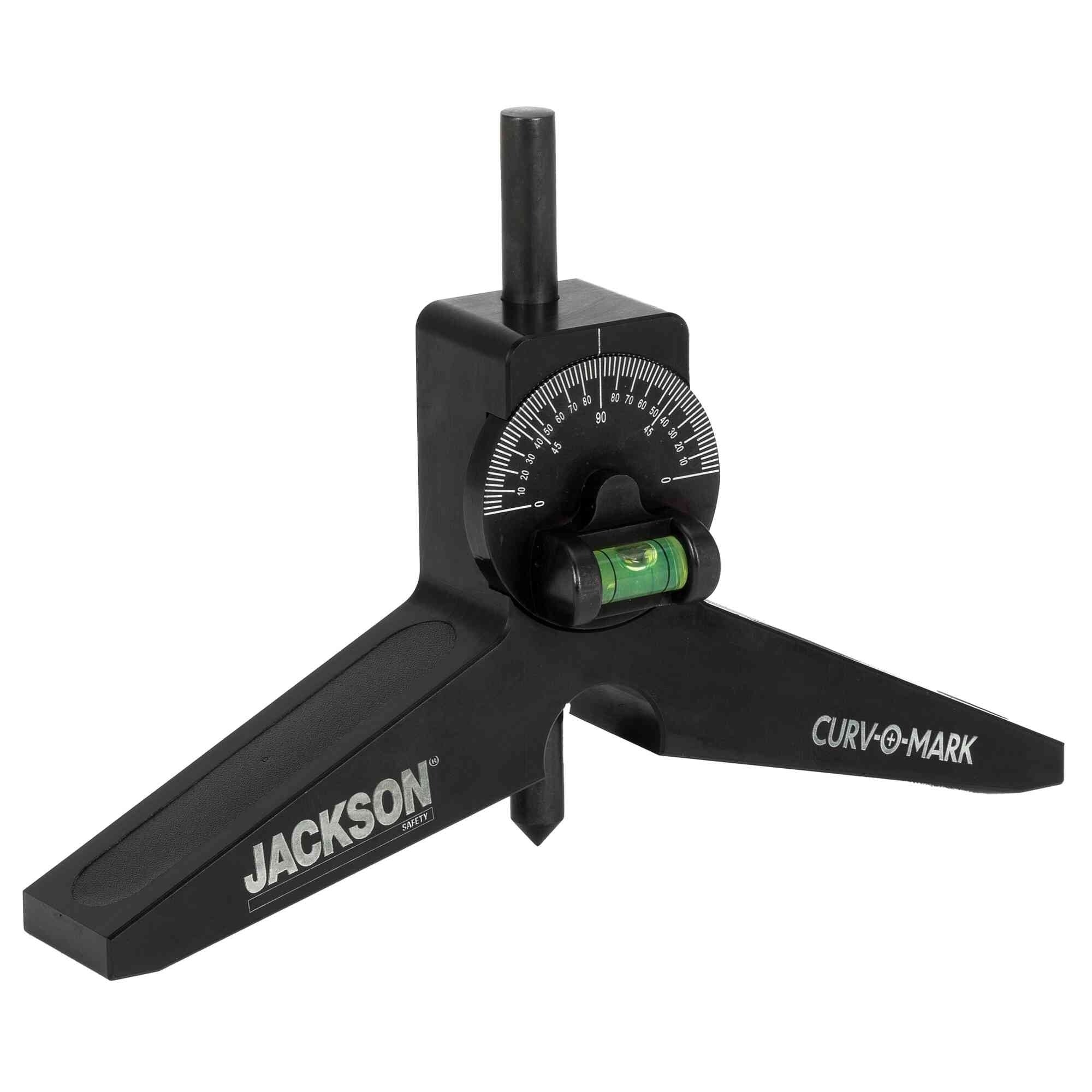

Jackson Safety 23607 is a Curv-O-Mark+ large centering head designed for pipe fitters, welders, and fabricators to perform centerline layout, angle finding, and keyway or butt-in marking. It features aerospace-grade anodized aluminum construction, rare-earth magnetic legs for hands-free positioning, a 360-degree adjustable precision dial with 2.5-degree increments, a built-in bubble vial for alignment, and a hardened EN31 steel centering pin for direct marking.

• Aerospace-grade anodized aluminum one-piece Y-shaped body with a 360-degree adjustable dial (2.5-degree increments).
• Rare-earth magnetic legs for secure hands-free positioning and a built-in bubble vial for angle alignment.
• Hardened EN31 steel centering pin suitable for tapping to create direct marks; replacement parts 23608 and 23610 listed.

Product Highlights

Large centering head for pipe alignment and angle marking with 360-degree dial and hardened EN31 centering pin.

Product Information

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 23607
• Country of Origin: India

Technical Specifications

• Brand: Jackson Safety
• MPN: 23607
• Product Type: Pipe alignment tool / Large centering head
• Material: Aerospace-grade anodized aluminum
• Magnetic: Yes (rare-earth magnets)
• Centering Pin Material: Hardened EN31 steel
• Dial: 360-degree adjustable dial, 2.5-degree increments
• Built-in Level: Bubble vial
• Pipe Diameter: 1+ inches
• Replacement Parts: 23608, 23610
• Country of Origin: India
• Weight: 1.17 lb
• Dimensions: 8.27 x 1.77 x 6.30 in
• Item Number: 7197395
