Jackson Safety 16054 Welding Magnifier Plate 1.25 Diopter

Product Description

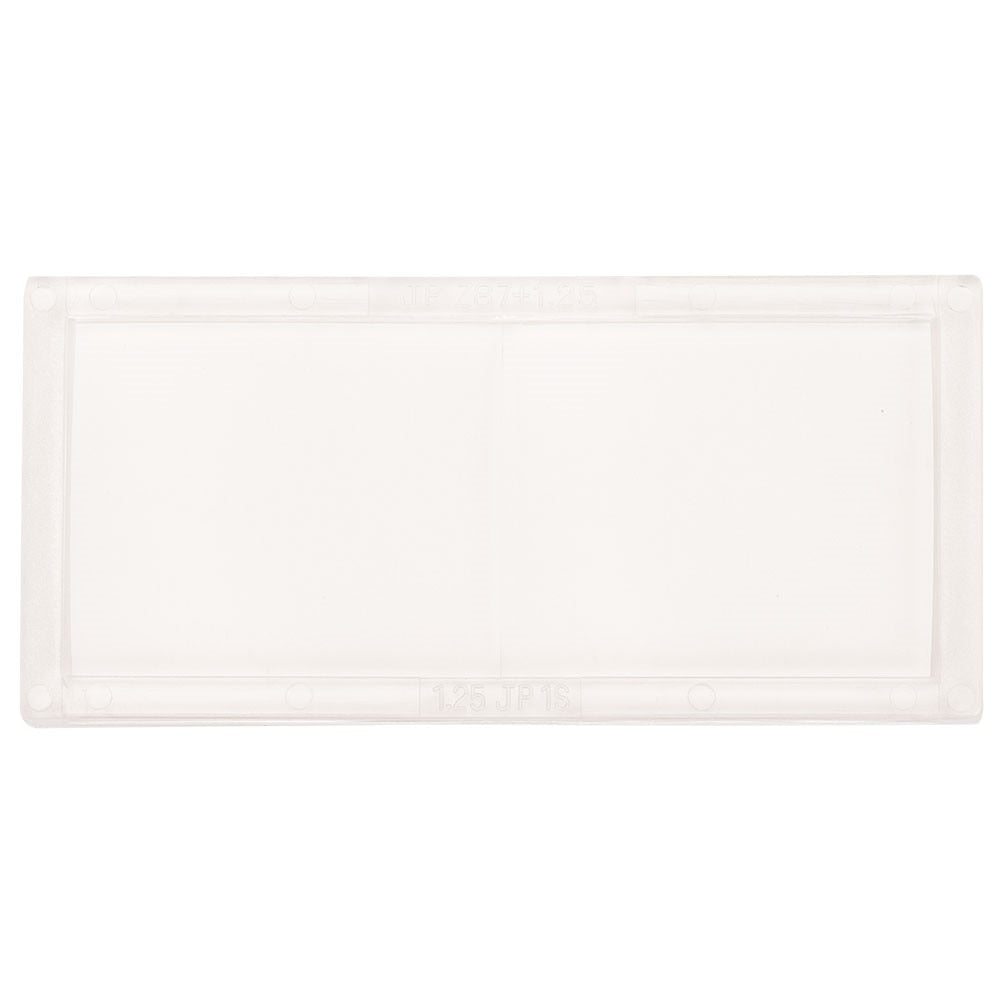

The JACKSON SAFETY 16054 is a polycarbonate magnifying plate designed for use with welding helmets. It functions as a cheater lens, providing 1.25 diopter magnification to help welders see close work more clearly without removing their helmet. The clear polycarbonate construction offers scratch resistance and maintains optical clarity under typical welding conditions. This magnifier plate is positioned toward the rear of passive or auto-darkening filter (ADF) lens assemblies, sitting behind the main filter to correct vision at the task level.

This magnifier plate is suited for professional welders and fabricators who require near-vision correction while working. It is compatible with EQC filter systems, allowing it to fit into a broad range of welding helmet configurations. Typical applications include MIG, TIG, and stick welding tasks where close bead inspection and precision joint work demand clear, corrected vision. It is sold individually and is a straightforward field replacement or add-on for most compatible helmets.

Key Features

• 1.25 diopter magnification for near-vision correction inside the helmet
• Polycarbonate construction with scratch-resistant properties
• Clear lens maintains visual clarity without distorting arc or weld pool view
• Compatible with passive and ADF filter assemblies using EQC filter format
• Positions toward the rear of the filter stack for stable, secure fitment

Compatibility

Designed for use with passive and auto-darkening filter (ADF) welding helmets that accept EQC-format filters. Compatible with all EQC filters as stated by the manufacturer.

Installation Notes

Installation is performed by a welder or safety equipment technician and requires no tools in most cases. The magnifier plate slides or snaps into the rear position of the lens assembly behind the ADF or passive filter. Ensure the helmet is fully powered down and the filter is seated correctly before closing the helmet shell. Follow the helmet manufacturer's lens-stack sequence to avoid improper fitment that could affect arc protection.

Technical Specifications

• Magnification: 1.25 Diopter
• Material: Polycarbonate
• Lens Type: Clear
• Filter Compatibility: EQC Format
• Unit of Measure: Each

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 16054
