Jackson Safety 14791 Magnetic Welding Burning Guide

Product Description

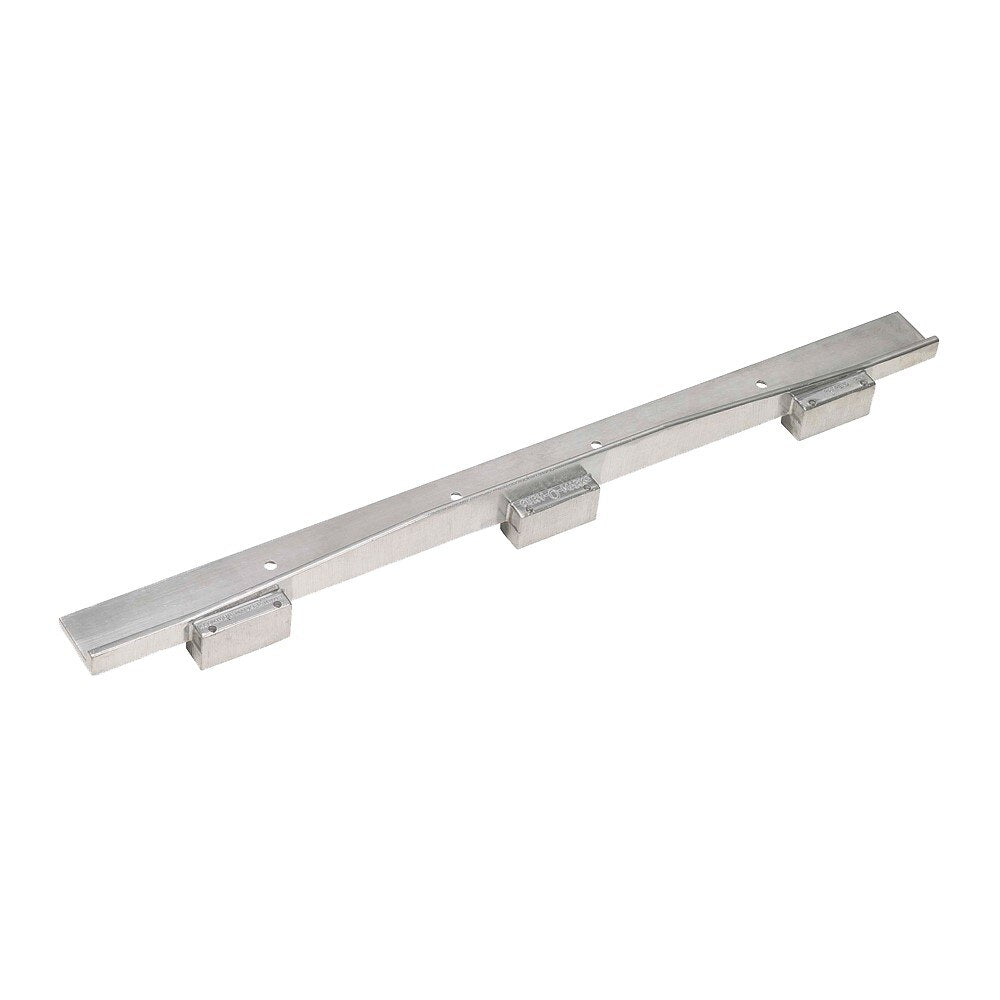

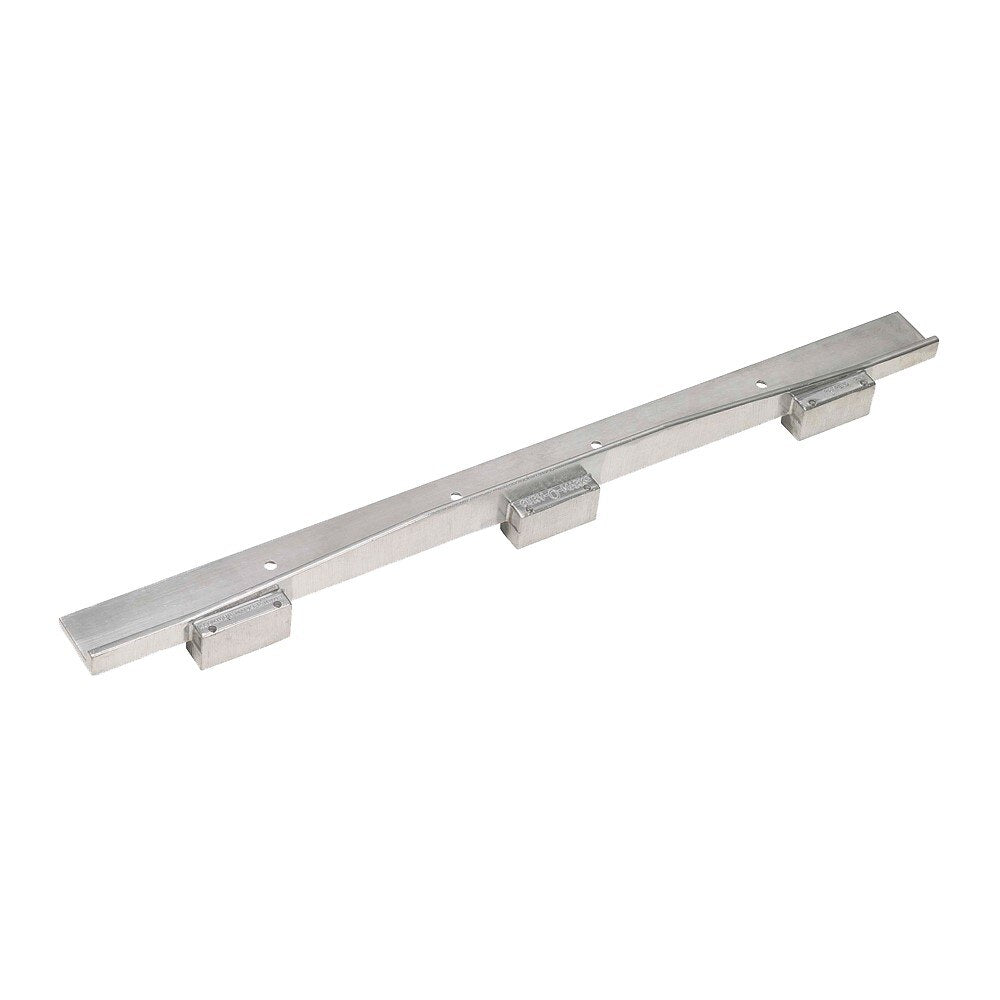

The JACKSON SAFETY 14791 is a magnetic burning guide designed to provide a strong, durable straight edge for use with a burning torch or plasma cutter. Built for structural thermal cutting and layout work, this tool features three cast-in magnets rated at 30 pounds of pull each, allowing the guide to be positioned and held securely on steel in any orientation. The 24-inch blade sits on a raised plane to keep the torch or cutter tip at the correct standoff distance. The guide measures 18 inches in length and is constructed of heat-resistant material engineered to withstand spatter and elevated temperatures produced during cutting operations.

This burning guide is intended for use in fabrication shops, structural steel work, and field cutting applications where a consistent straight-edge reference is required. It is suited for professional welders, ironworkers, and metal fabricators who perform repetitive straight-line cuts with oxy-fuel torches or plasma cutting equipment. The raised-plane blade design keeps the cutting head clear of the guide body, reducing the risk of heat damage to the tool during extended use.

Key Features

• Three cast-in 30-pound pull magnets hold the guide firmly to steel in any position
• 24-inch blade mounted on a raised plane keeps torch or cutter tip at proper standoff
• Heat-resistant construction withstands spatter and thermal exposure from cutting operations
• Straight-edge design supports precise layout and structural thermal cutting
• Compatible with both oxy-fuel burning torches and plasma cutters

Compatibility

Designed as a general-purpose straight-edge guide for use with oxy-fuel burning torches and plasma cutting equipment in structural thermal cutting and fabrication layout applications.

Installation Notes

This guide is installed by a welder or metal fabricator by placing the magnetic base against a clean steel work surface and allowing the magnets to seat firmly before beginning a cut. Ensure the work surface is free of heavy mill scale, paint, or debris that could reduce magnetic holding strength. Always shut down the cutting torch or plasma unit before repositioning the guide. Follow applicable AWS safety guidelines and shop safety protocols when working with open-flame or plasma cutting equipment.

Technical Specifications

• Magnet Pull Rating: 30 pounds per magnet, 3 magnets total
• Blade Length: 24 inches
• Overall Length: 18 inches
• Blade Plane: Raised
• UPC: 626053604899

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14791
