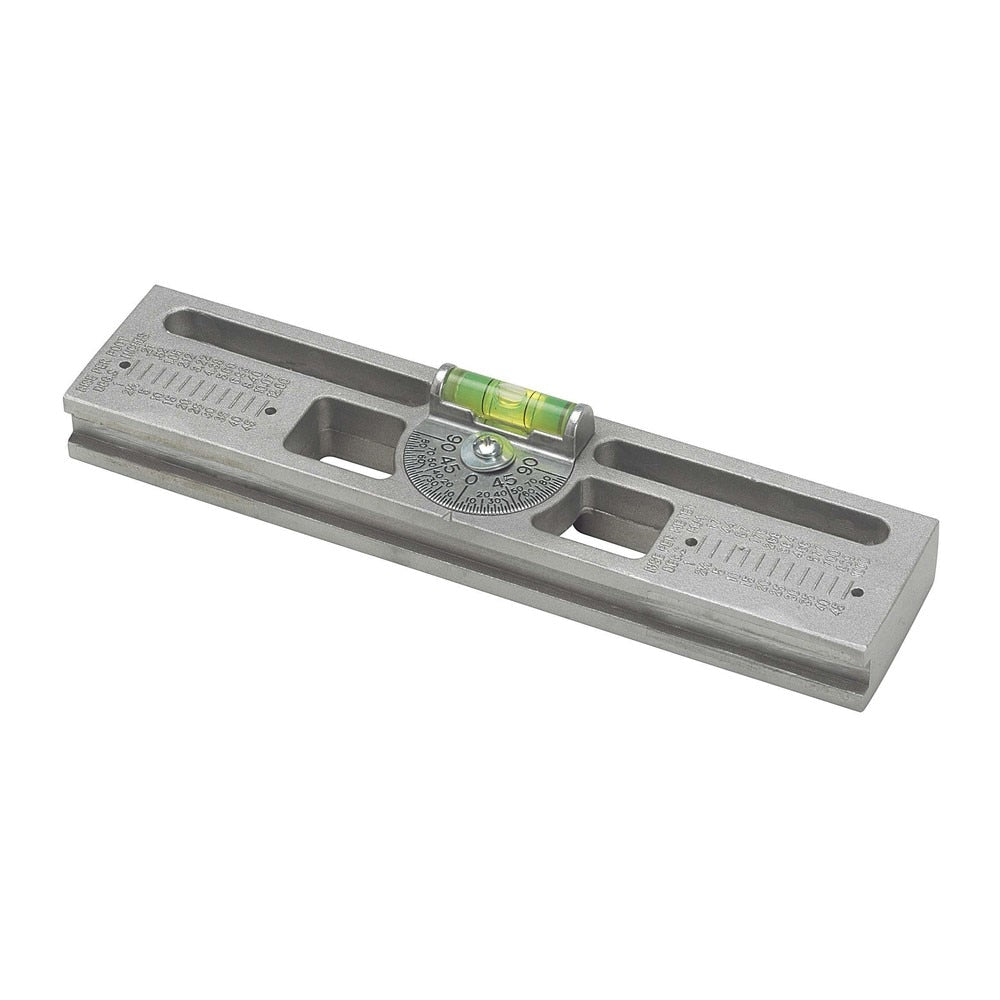

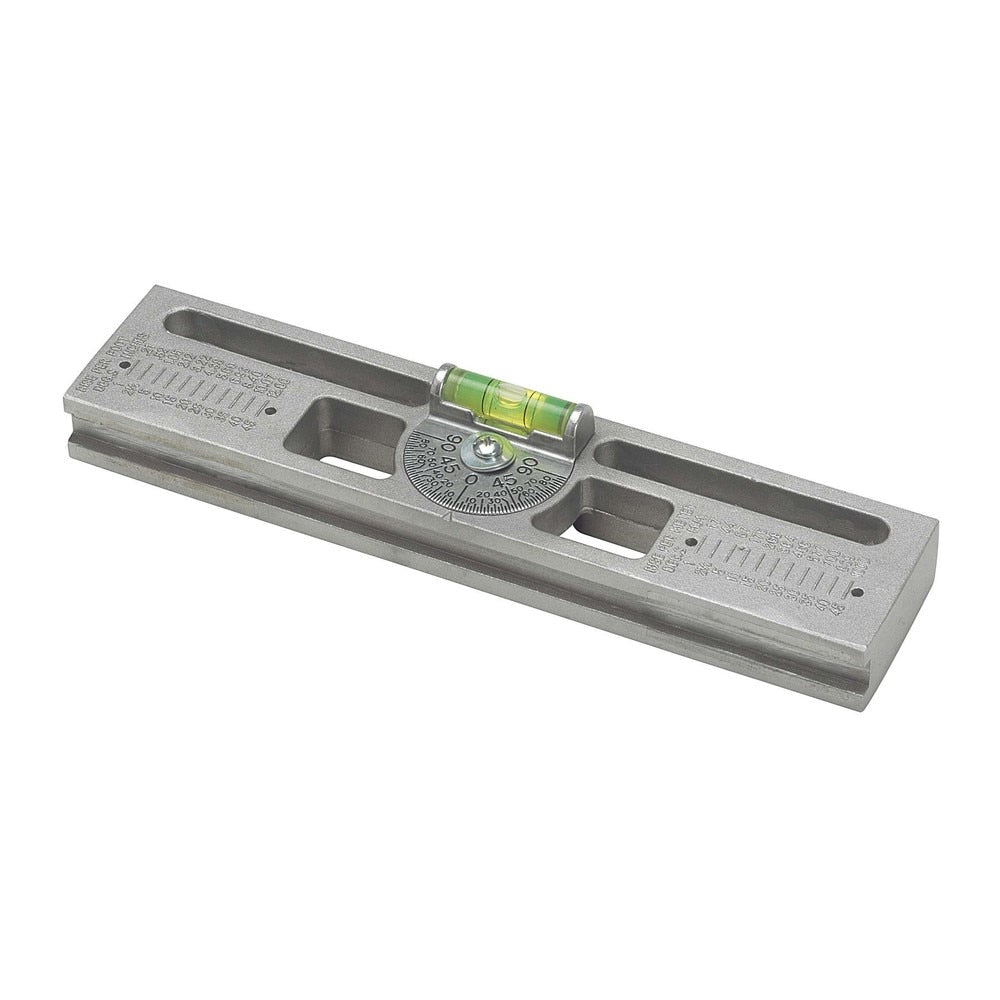

Jackson Safety 14777 Pro-mag Magnetic Level 8 Inch

Product Description

The JACKSON SAFETY 14777 Pro-Mag Level is an 8-inch cast aluminum magnetic level designed for tradespeople who need accurate angle measurement in demanding work environments. The tool features a 360-degree adjustable dial bubble protractor with two 90-degree quadrants, delivering reliable angular precision on the job. Two built-in 25-pull magnets hold the level firmly against steel pipe, structural members, and fabrication fixtures. The cast aluminum body keeps weight low without sacrificing durability, making it practical for continuous use in the field or in a fabrication shop.

This level is suited for pipe fitters, welders, jig builders, and other trades that require consistent angle determination during layout, fit-up, or inspection. Its magnetic base allows hands-free positioning on steel surfaces, freeing the user to tack, mark, or align components without a helper. The 360-degree protractor dial covers full angular range in two 90-degree quadrants, making it useful in both plumb and pitch applications common to mechanical and structural trades.

Key Features

• 360-degree adjustable dial bubble protractor (DSL) with two 90-degree quadrants for precise angle measurement
• Two built-in 25-pull magnets for secure, hands-free attachment to steel surfaces
• Cast aluminum construction — durable and lightweight for field use
• Measures 9 inches x 2 inches x 0.75 inches overall
• Sold individually, one level per order

Compatibility

Designed for use on steel pipe, structural steel, and fabricated assemblies common in pipefitting, welding, and jig-building applications.

Installation Notes

This tool requires no installation. Attach the magnetic base directly to a clean, flat steel surface before taking a reading. Remove slag, weld spatter, or debris from the contact surface to ensure full magnet engagement and accurate measurement. Store away from other magnetic tools or electronics that could affect calibration of the bubble vial over time.

Technical Specifications

• Material: Cast aluminum
• Overall Length: 9 inches
• Width: 2 inches
• Thickness: 0.75 inches
• Magnet Pull Strength: 25-pull (x2)
• Protractor Range: 360 degrees (two 90-degree quadrants)
• UPC: 626053604790
• Sold As: Each

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14777
