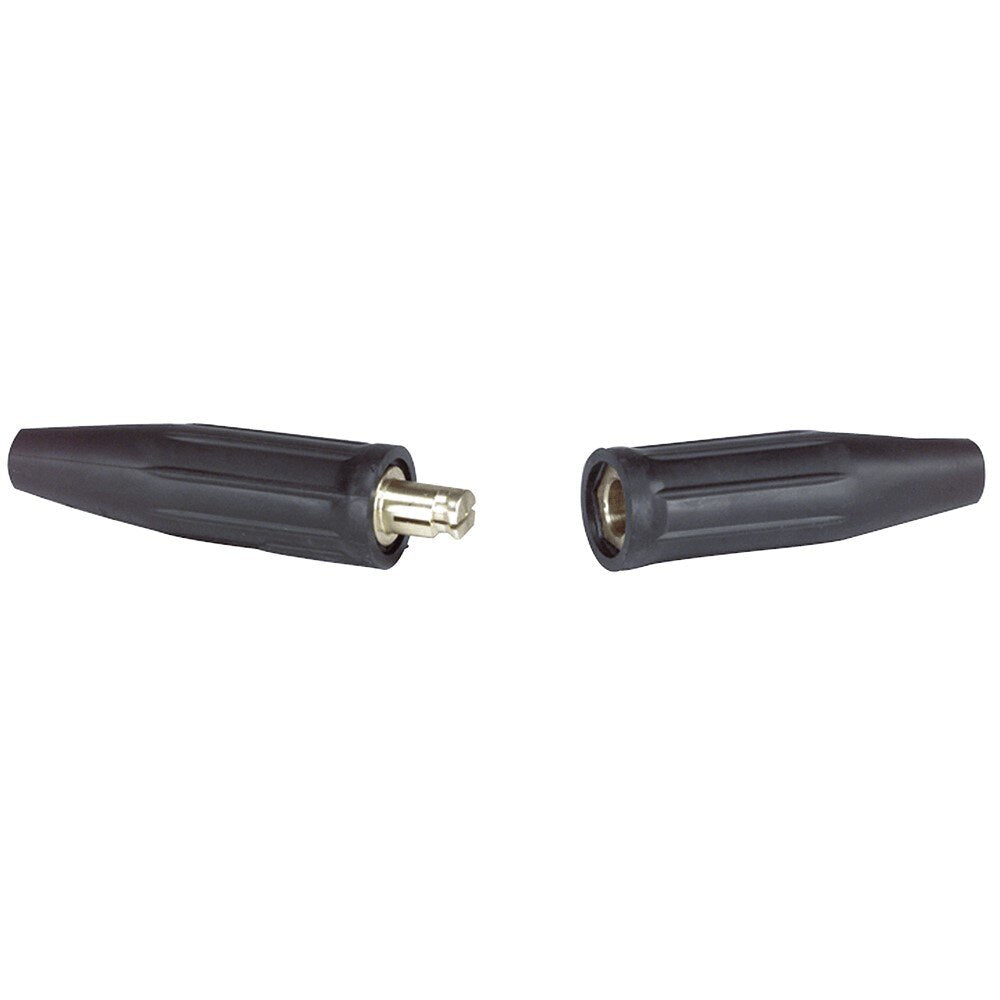

Jackson Safety 14745 Cable Connector Double Dome-nose

Product Description

The JACKSON SAFETY 14745 is an insulated cable connector designed for temporary power distribution and welding cable applications in industrial and construction environments. It uses a camlock-style connection system with a cable capacity of 1/0 through 2/0 AWG. The connector features a form-fitted rubber jacket that resists dirt, oil, and moisture, and two large dome-nose screws for a high-conductivity mechanical connection. Electricians and temporary power technicians install this type of connector where rapid cable assembly and disassembly is required on job sites or at live events.

This connector is suited for use in heavy-duty temporary power setups, generator distribution systems, and portable welding cable assemblies. The rubber insulated jacket provides a secure grip and protects internal conductors from jobsite contaminants. The double dome-nose screw design ensures a firm, low-resistance electrical connection throughout the service cycle. This item is sold individually but is packaged in cases of 6 units.

Key Features

• Camlock-style connection system mates male and female halves for secure, repeatable assembly
• Cable capacity of 1/0 through 2/0 AWG
• Form-fitted rubber jacket resists dirt, oil, and moisture
• Two large dome-nose screws provide high-conductivity mechanical connection
• Available in male and female configurations for system flexibility

Compatibility

Designed as an OEM-style camlock cable connector compatible with standard 1/0 through 2/0 AWG cable assemblies used in temporary power distribution and welding applications.

Installation Notes

Installation should be performed by a qualified electrician familiar with temporary power distribution systems and applicable NEC requirements. De-energize and lock out all circuits before making or breaking cable connections. Ensure the dome-nose screws are fully tightened to achieve a secure, low-resistance connection before energizing. Inspect the rubber jacket for cuts or damage before each use.

Technical Specifications

• Connection Type: Camlock double dome-nose screw
• Cable Capacity: 1/0 through 2/0 AWG
• Jacket Material: Rubber, insulated
• UPC: 626053604622
• Sold As: Each
• Case Quantity: 6 units per case

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14745
