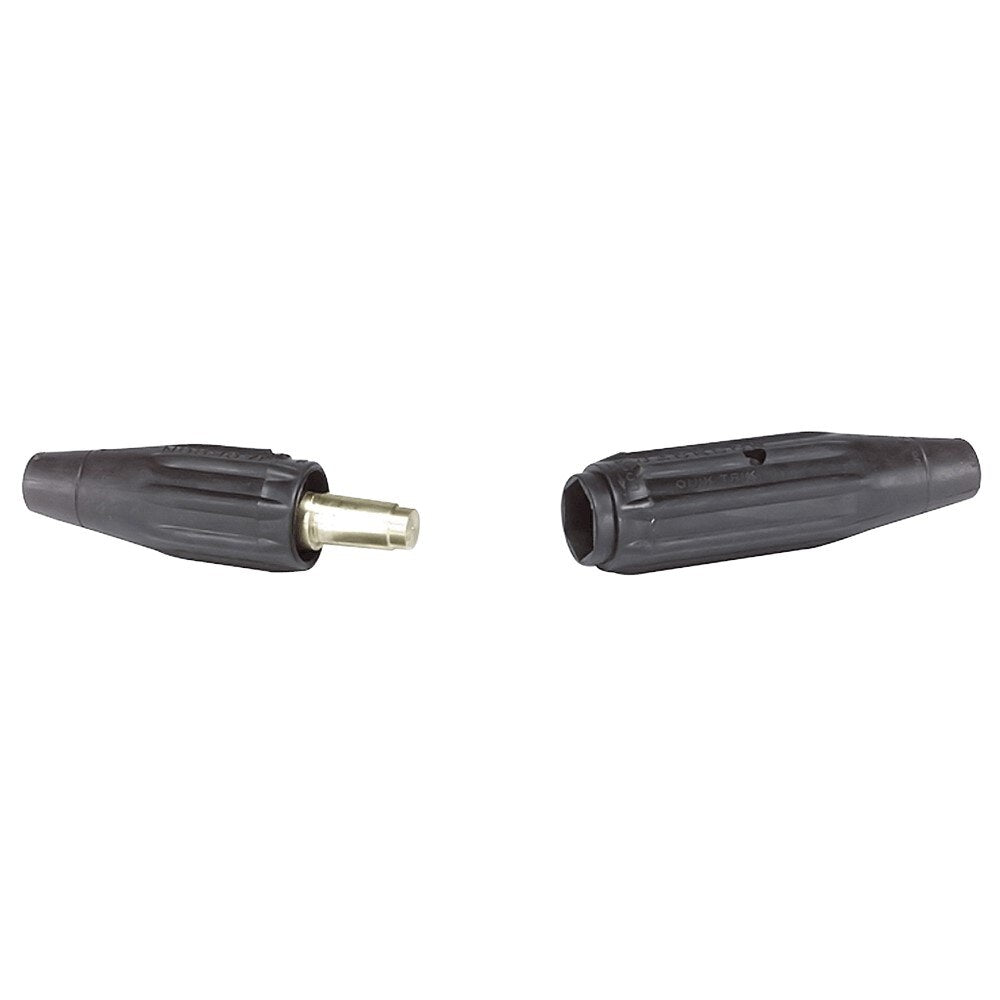

Jackson Safety 14737 Cable Connector Single Dome-nose

Product Description

The JACKSON SAFETY 14737 is a single dome-nose welding cable connector designed for high-conductivity electrical connections in welding applications. It features a camlock and locking bar mechanism that draws together to form a secure, durable connection. The connector accommodates cable sizes 3/0 and 4/0. An insulated, form-fitted rubber jacket protects the connector body against dirt, oil, and moisture. The large dome-nose screw provides a reliable, low-resistance contact point. Licensed electricians and professional welders install these connectors in industrial and job-site welding setups.

This connector is suited for use in industrial welding environments where reliable, quick-disconnect cable connections are required. It is sold as a single unit and is available in male or female configurations to match the adapter needed at each connection point. The camlock coupling design allows for fast field assembly and disassembly, making it practical for mobile welding rigs and fixed shop installations alike.

Key Features

• Camlock and locking bar mechanism creates a secure, durable connection
• Compatible with cable sizes 3/0 and 4/0
• Insulated form-fitted rubber jacket resists dirt, oil, and moisture
• Large dome-nose screw for high-conductivity contact
• Available in male or female adapter configurations

Compatibility

Designed as an OEM-style replacement or supplementary connector for welding cable assemblies requiring 3/0 or 4/0 cable capacity with camlock-style coupling.

Installation Notes

Installation should be performed by a qualified electrician or experienced welding professional. Disconnect and de-energize all welding equipment before servicing or replacing cable connectors. Ensure cable size matches the 3/0 or 4/0 capacity of this connector before terminating. Follow applicable NEC guidelines for welding cable and connector installations in your jurisdiction.

Technical Specifications

• Cable Connection Capacity: 3/0 and 4/0
• Connector Style: Single Dome-Nose
• Coupling Type: Camlock with Locking Bar
• Jacket Material: Rubber (Insulated, Form-Fitted)
• Weight: 0.62 pounds
• Unit of Measure: Each

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14737
