Jackson Safety 14683 Electrode Holder Light Duty

Product Description

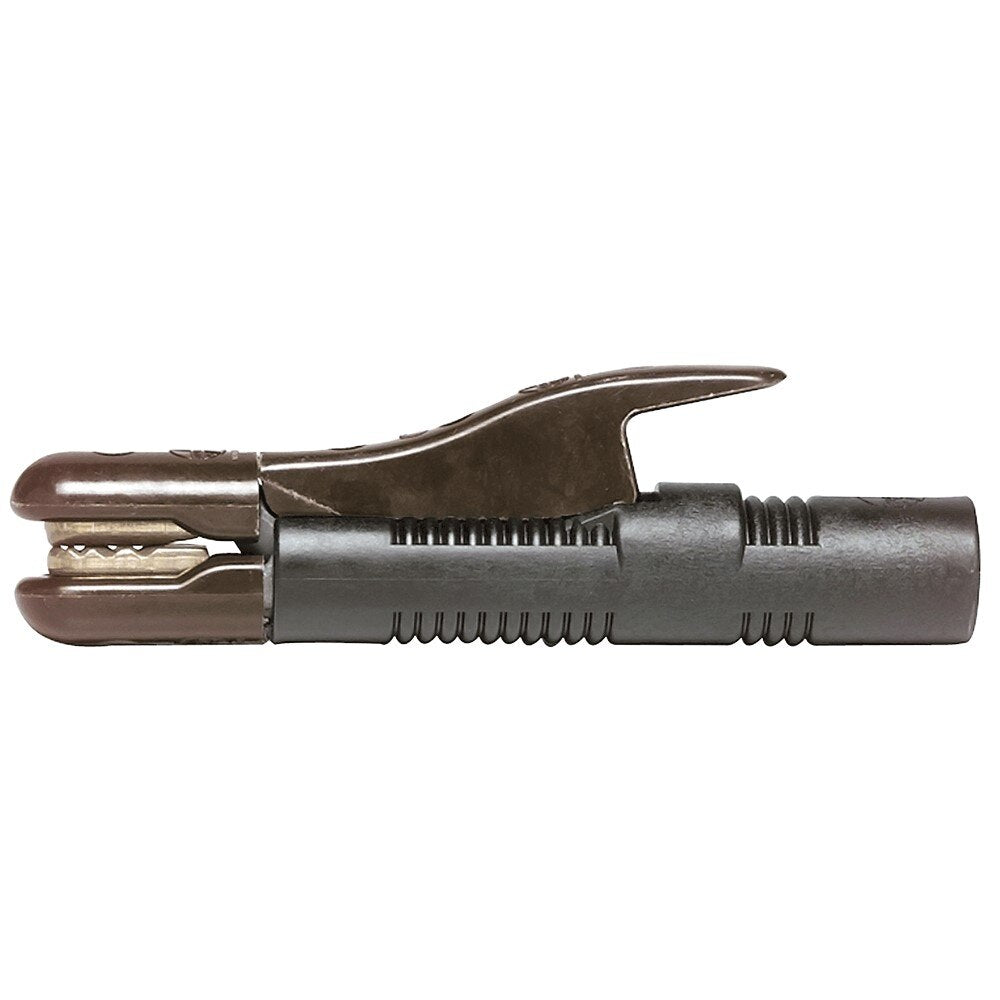

The JACKSON SAFETY 14683 is a light-duty aluminum electrode holder designed for manual stick welding applications. It features an ergonomically designed body with an integrated jaw that provides a convenient, angled grip on the electrode. Fully inserted pivots and internal springs maintain maximum dielectric integrity during operation, reducing the risk of current leakage through the handle. Constructed from JH-1 copper alloy at the contact points, the holder delivers solid electrical conductivity. An extended handle with integral grooves improves grip control during welding passes. This holder is suited for welders and trade professionals performing light-duty shielded metal arc welding (SMAW) work.

The 14683 is intended for light-duty welding tasks in fabrication shops, maintenance and repair operations, and field service environments. It is sized for 5/32 inch electrodes, making it appropriate for general-purpose stick welding on mild steel and similar base materials. The large dome screw cable connector accepts the welding lead cable and provides a secure, durable connection to the welding machine. This holder is a practical choice for welders who need a reliable, lightweight tool for moderate-duration welding work.

Key Features

• Ergonomic integrated jaw design provides angled electrode positioning for better torch control
• JH-1 copper alloy construction at contact surfaces ensures reliable electrical conductivity
• Fully inserted pivots and springs maintain maximum dielectric integrity throughout the handle
• Extended handle with integral grooves improves grip and reduces hand fatigue
• Large dome screw cable connector delivers a near-unbreakable cable attachment
• Sized for 5/32 inch electrodes for standard light-duty SMAW applications

Compatibility

Designed as a light-duty OEM-style electrode holder for use with 5/32 inch welding electrodes in standard shielded metal arc welding setups.

Installation Notes

Installation and replacement of electrode holders should be performed by a qualified welder or electrical technician with the welding machine powered off and the lead disconnected from the power source. Secure the welding cable to the dome screw connector firmly before resuming operation. Follow applicable AWS safety guidelines and local workplace electrical safety codes when handling and replacing welding accessories.

Technical Specifications

• Electrode Capacity: 5/32 inch
• Cable Connector Electrode Capacity: 3/16 inch
• Material: Aluminum body, JH-1 copper alloy contact
• Duty Rating: Light Duty
• Weight: 0.63 pounds
• Unit of Measure: Each

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14683
