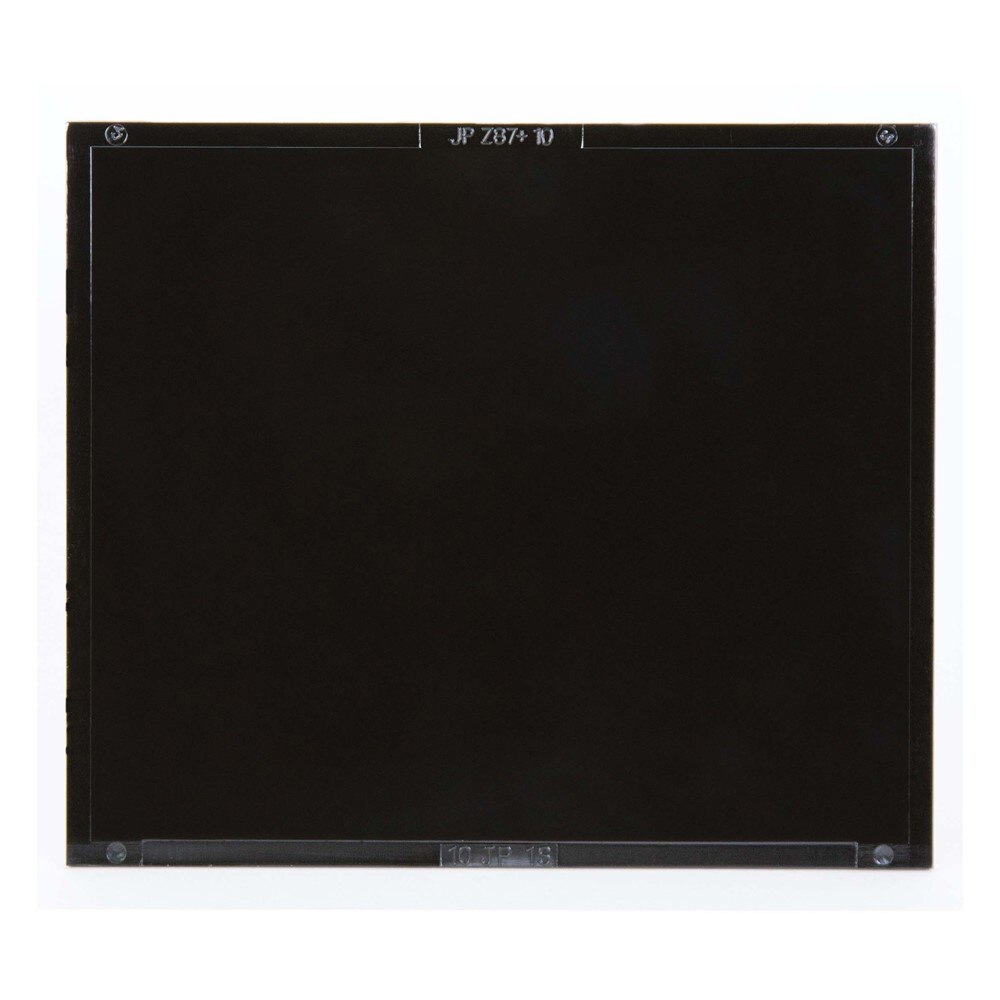

Jackson Safety 14563 Passive Filter Plate Shade 9

Product Description

The JACKSON SAFETY 14563 is a passive filter plate designed for use in compatible welding helmets. Manufactured from polycarbonate, this filter lens offers Shade 9 protection, blocking harmful light and radiation produced during welding operations. It is intended for installation in W10 and W20 Series passive welding helmets as a direct replacement or service component. Welding technicians and safety equipment service personnel handle installation and replacement during routine maintenance or when lens clarity is compromised.

This filter plate is suited for light to medium welding applications where Shade 9 lens protection is appropriate. The polycarbonate construction provides impact resistance and optical clarity. It is part of a broader system of interchangeable lens components that includes cover lenses, safety plates, and magnifying plates, allowing techs to configure helmets for specific job requirements.

Key Features

• Shade 9 passive filter lens for light to medium welding protection
• Polycarbonate construction for impact resistance and optical clarity
• Compatible with W10 and W20 Series passive welding helmets
• Interchangeable design works alongside cover lenses, safety plates, and magnifying plates
• Sold individually, allowing single-unit replacement as needed

Compatibility

Designed for use with W10 and W20 Series passive welding helmets from JACKSON SAFETY.

Installation Notes

Installation and replacement of filter plates should be performed by qualified personnel familiar with welding helmet construction. Power down and disconnect any auto-darkening or electronic components before servicing if applicable. Ensure the lens is seated securely in the helmet frame and all retaining components are properly engaged before returning the helmet to service. Follow applicable ANSI Z87.1 eye and face protection standards when selecting and installing filter lenses.

Technical Specifications

• Lens Type: Passive Filter Plate
• Shade: 9
• Material: Polycarbonate
• Unit of Measure: Each
• UPC: 626053604288

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14563
