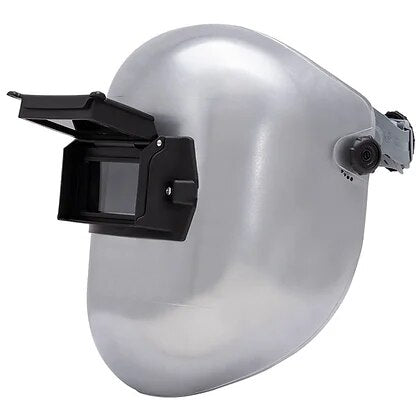

Jackson Safety 14313 280PL Passive Welding Helmet Silver

Product Description

The JACKSON SAFETY 14313 is the 280PL lift front passive welding helmet, designed specifically for pipeline welding applications. It features a spring-loaded lift front that lets welders flip the lens up without removing the hood, keeping workflow moving during pre- and post-weld preparation. The shell is constructed from Super Tuff nylon, a material chosen for its combination of low weight and resistance to the heat and spatter exposure common in pipeline and structural welding environments. This helmet ships with a non-slotted adapter and a silver finish. It is intended for use by professional welders and pipe welders working in demanding field and shop conditions.

The 280PL is built for pipeline welding scenarios where durability and fast transitions between welding and inspection tasks matter. The helmet includes a Z87.1+ rated high-impact polycarbonate window and a 2 inches by 4.25 inches Shade 10 passive filter plate. The patented 370 Speed Dial ratcheting headgear allows quick and precise head size adjustments without removing gloves, which is a practical advantage in active field environments. The patented lens retention system simplifies swapping filter, cover, and protective plates during use.

Key Features

• Spring-loaded lift front eliminates the need to fully remove the helmet during pre- and post-weld preparation
• Super Tuff nylon shell is lightweight and rated for harsh welding extremes including high heat and spatter
• Patented 370 Speed Dial ratcheting headgear provides tool-free, glove-friendly fit adjustment
• Patented lens retention system allows fast, effortless plate loading and swapping
• Includes Z87.1+ rated high-impact polycarbonate outer window for impact protection
• Ships with a 2 inches by 4.25 inches Shade 10 passive filter plate

Compatibility

Designed as an OEM-style passive welding helmet for pipeline and general welding applications requiring a lift-front configuration with a non-slotted adapter mount.

Installation Notes

Fit adjustment is performed using the 370 Speed Dial ratchet mechanism at the rear of the headgear — no tools required. Before replacing filter or cover plates, ensure the welding area is clear and the arc source is inactive. Inspect the lens retention clips and polycarbonate window for cracks or spatter damage before each use. Passive welding helmets must be fitted with the correct shade filter for the welding process per ANSI Z87.1 guidelines.

Technical Specifications

• Lens Size: 2 inches x 4.25 inches
• Shade: 10 (passive filter)
• Window Rating: ANSI Z87.1+ high-impact polycarbonate
• Shell Material: Super Tuff nylon
• Lift Front: Spring-loaded
• Headgear: 370 Speed Dial ratcheting
• Adapter Type: Non-slotted
• Finish: Silver
• Unit of Measure: Each

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14313
