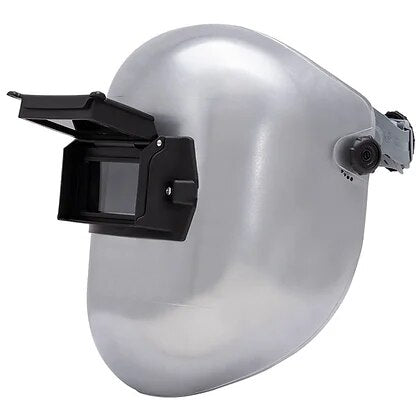

Jackson Safety 14312 280PL Lift Front Passive Welding Helmet

Product Description

The JACKSON SAFETY 14312 is a passive welding helmet designed specifically for pipeline applications. It features a spring-loaded lift front that allows welders to flip up the shell without fully removing the helmet, keeping workflow moving between welds and prep work. The shell is molded from Super Tuff nylon, a lightweight material rated for high-heat, high-spatter environments. The helmet ships ready to use with a Z87.1+ high-impact polycarbonate window and a 2 inches x 4.25 inches Shade 10 passive filter lens already installed. A slotted adapter is included for accessory compatibility. Licensed HVAC, pipe, and structural welding professionals will find this helmet suited to demanding field and shop conditions alike.

The 14312 is built around pipeline welding scenarios where frequent hood raises slow down productivity. The spring-loaded lift front eliminates that step during pre-weld fit-up and post-weld inspection. The patented 370 Speed Dial ratcheting headgear provides tool-free size adjustment for a secure, balanced fit across a range of head sizes. The helmet is finished in silver and includes a slotted adapter for attaching supplemental accessories. It is appropriate for both residential and industrial welding applications where a passive fixed-shade lens is preferred over auto-darkening.

Key Features

• Spring-loaded lift front eliminates hood removal during pre- and post-weld preparation
• Patented 370 Speed Dial ratcheting headgear for tool-free, balanced fit adjustment
• Super Tuff nylon shell — lightweight and rated for extreme spatter and heat exposure
• Patented lens retention system for fast, tool-free loading of filter, cover, and protective plates
• Includes Z87.1+ high-impact polycarbonate window and 2 inches x 4.25 inches Shade 10 passive filter
• Slotted adapter included for accessory attachment

Compatibility

Designed as an OEM-style passive welding helmet for pipeline and general welding applications requiring a fixed-shade lift-front design. The included Shade 10 filter and Z87.1+ lens are sized at 2 inches x 4.25 inches for standard passive helmet filter plate formats.

Installation Notes

Fitting and headgear adjustment should be performed before entering the welding area. Use the 370 Speed Dial ratchet to size the headgear to a snug, stable position. Inspect the lens retention system and confirm the filter plate, cover lens, and protective plate are fully seated before striking an arc. Lens replacement and filter plate swaps should be done with the helmet away from the work area and all welding power sources de-energized or set to standby.

Technical Specifications

• Shell Material: Super Tuff Nylon
• Lens Shade: Shade 10 (passive)
• Filter Plate Size: 2 inches x 4.25 inches
• Window Standard: Z87.1+ high-impact polycarbonate
• Headgear Type: 370 Speed Dial ratcheting
• Color: Silver
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14312
