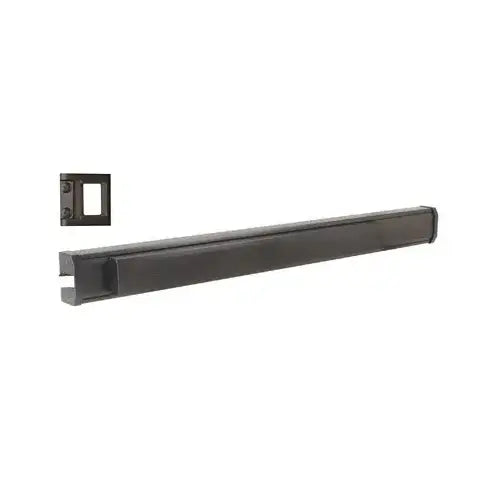

Jackson 311295S3313 1295 Push Pad Rim Panic Exit Device 36 inches

Product Description

The Jackson 311295S3313 1295 Series Rim Panic Exit Device is intended for use on narrow stile aluminum, hollow metal, or wood single doors, as well as paired doors when using the 896 removable mullion. This device fits standard openings of thirty-six inches but can be adjusted for smaller widths.

• Designed for use with 1-3/4 inches (44 mm) narrow, medium, and wide stile doors.
• Features a soft-touch smooth action push-pad.
• Device can be cut to size for precise fitting.

Product Highlights

This exit device provides an easy method for egress while ensuring safety and compliance with exit regulations.

Product Information

Standard Information

• Brand: Jackson
• Certification: ANSI/BHMA 156.3

Technical Specifications

• Door Thickness: 1-3/4 inches (44.5 mm)
• Door Width: 36 inches (914.4 mm)
• Handing: Non Handed
• Includes: Mounting Hardware
• Material - End Cap: Aluminum
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered Steel
• Minimum Stile Width: 1-3/4 inches (44.5 mm)
• Model: 1295
• Panic Bar Base Height: 3-3/16 inches (81 mm)
• Panic Bar Projection: 2-7/8 inches (73 mm)
• Panic Bar Width Net: 34.5 inches (876.3 mm)
• Panic Dogging: Standard Hex Key Dogging
• Panic Type: Rim
• Push Pad Width: 24 inches (609.6 mm)
• Recommended Door Type: Aluminum, Wood, Hollow Metal
• Series: 1200
• UL Listed: Yes
• Part Number: 311295S3313
• Size: 36 inches (914 mm)
