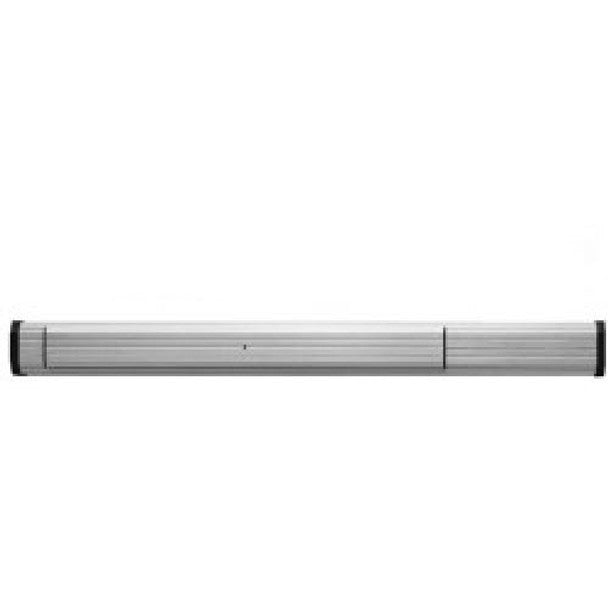

JACKSON 311285R37628 Crl Satin Aluminum Panic Exit Device

Product Description

The JACKSON 311285R37628 Crl Exit Device offers reliability and a modern design. This exit device is suitable for doors made from aluminum, wood, or hollow metal that have a thickness of one and three-quarters inches. The design fits narrow, medium, and wide stile doors and includes trimmable components for field adjustments. The vertical rods accommodate doors up to eighty-four inches tall.

• Designed for use with one and three-quarters inch doors
• Soft-touch push-pad for easy operation
• Can be cut to fit specific door sizes

Product Highlights

This device allows for simple and effective exit solutions in commercial settings, ensuring safety and ease of use.

Product Information

Standard Information

• Brand: JACKSON
• Certification: ANSI/BHMA 156.3

Technical Specifications

• Door Height: 84 inches
• Door Thickness: 1-3/4 inches
• Door Width: 36 inches
• Finish: Satin Aluminum
• Handing: Right Hand Reverse Bevel
• Includes: Mounting Hardware
• Material - End Cap: Aluminum
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered Steel
• Material - Mechanical Components: Stainless and Hardened Plated Steel
• Minimum Stile Width: 1-3/4 inches
• Model: 1285
• Panic Bar Base Height: 3-3/16 inches
• Panic Bar Projection: 2-7/8 inches
• Panic Bar Width Net: 34-1/2 inches
• Panic Dogging: Standard Hex Key Dogging
• Panic Type: Concealed Vertical Rods
• Push Pad Width: 24 inches
• Recommended Door Type: Aluminum Narrow, Medium, Wide Stile, Hollow Metal
• Replacement Parts: 302861, 30821J628
• Series: 1200
• Tall Door Extension Rods: 301347 & 301348
• UL Listed: Yes
