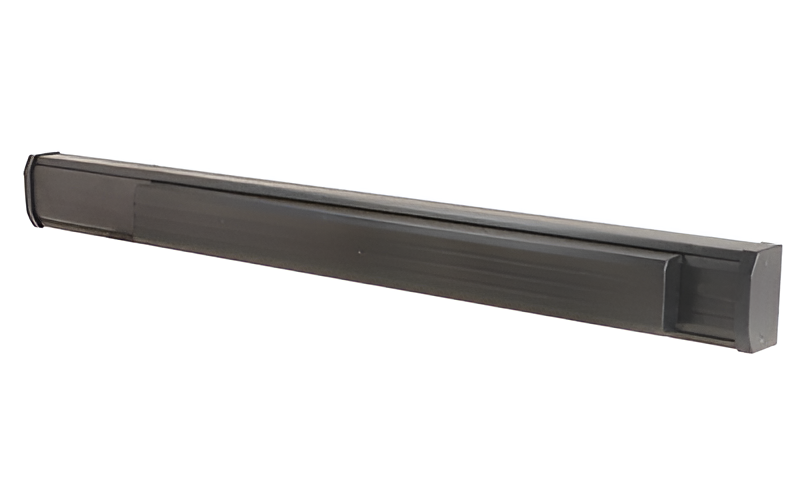

JACKSON 311285R37313 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device 36

Product Description

The JACKSON 311285R37313 exit device incorporates a push-pad design with the dependability of the 10 Series Crossbar Device. It is suitable for installation on aluminum, wood, or hollow metal doors with styles of one and three-fourths inches. The device's base can be trimmed for precise sizing in the field, accommodating vertical rods for doors up to eighty-four inches tall. It is designed for ease of use with a simple dogging mechanism.

• Compatible with one and three-fourths inch narrow, medium, and wide stile doors
• Features a smooth-action push-pad for effortless operation
• Trimmable base for customized fitting

Product Highlights

This exit device is ideal for various door types, ensuring safety and compliance.

Product Information

Standard Information

• Brand: JACKSON
• Certification: ANSI/BHMA 156.3

Technical Specifications

• Door Height: 84 inches
• Door Thickness: 1-3/4 inches
• Door Width: 36 inches
• Handing: Right Hand Reverse Bevel
• Includes: Mounting Hardware
• Material - End Cap: Aluminum
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered Steel
• Material - Mechanical Components: Stainless and Hardened Plated Steel
• Minimum Stile Width: 1-3/4 inches
• Model: 1285
• Panic Bar Base Height: 3-3/16 inches
• Panic Bar Projection: 2-7/8 inches
• Panic Bar Width Net: 34-1/2 inches
• Panic Dogging: Standard Hex Key Dogging
• Panic Type: Concealed Vertical Rods
• Push Pad Width: 24 inches
• Recommended Door Type: Aluminum Narrow, Medium, Wide Stile, Hollow Metal
• Replacement Parts: 302861, 30821J313
• Series: 1200
• Tall Door Extension Rods: 301347 & 301348
• UL Listed: Yes
