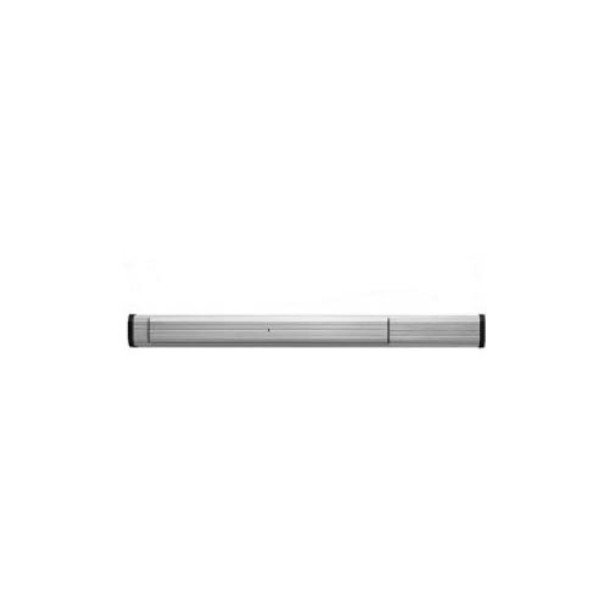

JACKSON 311285L37628 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device 36inch

Product Description

The JACKSON 311285L37628 Exit Device features a reliable design suitable for various doors. It is designed for use with one and three-quarter inch narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base can be adjusted for field sizing, making it flexible for different door heights.

• Designed for use with 1-3/4inch narrow, medium, and wide stile doors
• Soft-touch smooth action push-pad for easy operation
• Can be cut to size for a custom fit

Product Highlights

This exit device combines functionality with ease of use. The standard hex key dogging provides secure locking.

Product Information

Standard Information

• Brand: Jackson
• Certification: ANSI/BHMA 156.3

Technical Specifications

• Door Height: 84 inches
• Door Thickness: 1-3/4 inches
• Door Width: 36 inches
• Finish: Satin Aluminum
• Handing: Left Hand Reverse Bevel
• Includes: Mounting Hardware
• End Cap Material: Aluminum
• Housing Material: Aluminum
• Latch & Strike Material: Sintered Steel
• Minimum Stile Width: 1-3/4 inches
• Model: 1285
• Panic Bar Base Height: 3-3/16 inches
• Panic Bar Projection: 2-7/8 inches
• Panic Bar Width Net: 34-1/2 inches
• Panic Dogging: Standard Hex Key Dogging
• Panic Type: Concealed Vertical Rods
• Push Pad Width: 24 inches
• Recommended Door Type: Aluminum Narrow, Medium, Wide Stile, Hollow Metal
• Replacement Parts: 302861, 30821J628
• Series: 1200
• Tall Door Extension Rods: 301347 & 301348
• UL Listed: Yes
• Part Number: 311285L37628
• Size: 36 inches
• Item Package Quantity: 1
• Batteries Required: No
• Latch and Strike Material: Sintered Steel
• Mechanical Components Material: Stainless and Hardened Plated Steel
• Rail Length: 36 inches
• Trim / Function: EXIT ONLY
• UNSPSC Code: 46171500
