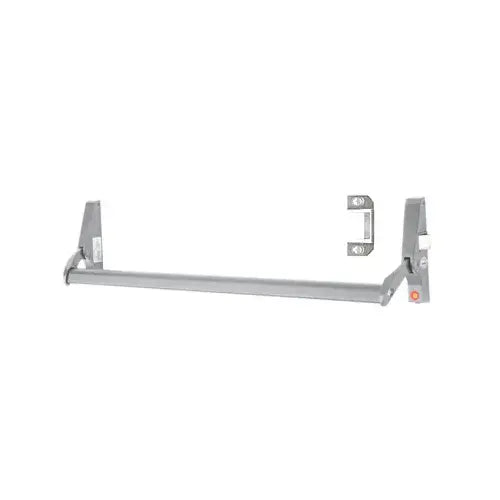

JACKSON 311095RC4628 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device 48inch

Product Description

The JACKSON 311095RC4628 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device is engineered for doors made of aluminum, wood, or hollow metal with a thickness of one and three-quarters inches. This product is built for durability while maintaining an appealing look. It is made using high-quality materials.

• Compatible with doors of various styles and materials.
• Features push paddle operation and crossbar options.
• Concealed fastening enhances security.

Product Highlights

The JACKSON panic exit device is suitable for narrow, medium, and wide stile applications, ensuring safety and ease in emergency exits.

Product Information

Standard Information

• Brand: Jackson
• Model: 1095

Technical Specifications

• Certification: ANSI/BHMA 156.3
• Door Thickness: 1-3/4 inches (44.5 mm)
• Door Width: 48 inches (1219.2 mm)
• Finish: Satin Aluminum
• Handing: Right Hand Reverse Bevel
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered Steel
• Material - Mechanical Components: Stainless and Hardened Plated Steel
• Panic Bar Projection: 4-5/8 inches (117.5 mm)
• Panic Dogging: Screw Driver
• Panic Type: Rim
• Grade: ANSI Grade 1
• Rail Length: 48 inches
• UL Listed: Yes
