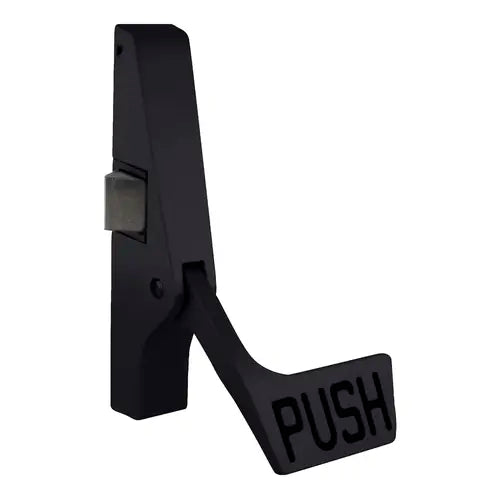

JACKSON 311095PLC313 Jackson 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device

Product Description

The JACKSON 311095PLC313 is a panic exit device designed for doors with a thickness of one and three-quarters inches. It is suitable for narrow, medium, and wide stile doors made from aluminum, wood, or hollow metal. This device ensures reliable operation for life safety requirements and is easy to install.

• Designed for one and three-quarters inch doors
• Concealed fastening enhances security
• Features dual dogging capability

Product Highlights

Product Information

Standard Information

• Brand: JACKSON
• Certification: ANSI/BHMA 156.3

Technical Specifications

• Door Thickness: 1-3/4 inches
• Handing: Left Hand Reverse Bevel (LHR)
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered Steel
• Material - Mechanical Components: Stainless and Hardened Plated Steel
• Model: 1095 Paddle
• Paddle Push Width: 3-3/8 inches
• Panic Bar Projection: 4-5/8 inches
• Panic Type: Rim (Paddle)
• Series: 10
• UL Listed: Yes
• ADA Compliant: No
