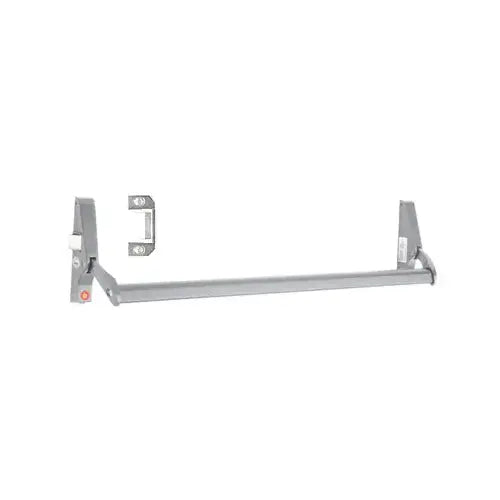

JACKSON 311095LC4628 Crl Satin Aluminum 48 Inches Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device

Product Description

The JACKSON 311095LC4628 Crl Satin Aluminum 48 inches Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device is made for doors with a thickness of one and three-quarter inches. This device fits narrow, medium, and wide stile aluminum, wood, or hollow metal doors. It offers concealed fastening for enhanced security and is a recognized standard for aluminum storefront hardware. The crossbar measures forty-eight inches in length and can be adjusted in the field.

• Designed for use with one and three-quarter inch thick doors
• Available with crossbar operation or an engraved push paddle on the active side
• Concealed fastening enhances security

Product Highlights

This rim panic exit device is ideal for ensuring safe exits in commercial spaces.

Product Information

Standard Information

• Brand: Jackson
• Certification: ANSI/BHMA 156.3

Technical Specifications

• Door Thickness: 1-3/4 inches (44.5 mm)
• Door Width: 48 inches (1219.2 mm)
• Finish: Satin Aluminum
• Handing: Left Hand Reverse Bevel (LHR)
• Includes: Mounting Hardware
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered Steel
• Material - Mechanical Components: Stainless and Hardened Plated Steel
• Minimum Stile Width: 1-3/4 inches (44.5 mm)
• Model: 1095
• Panic Bar Projection: 4-5/8 inches (117.5 mm)
• Panic Bar Width Net: 48 inches (1219.2 mm)
• Panic Dogging: Screw Driver
• Panic Head Base Width: 1-1/4 inches (31.8 mm)
• Panic Head Height: 7-5/16 inches (185.7 mm)
• Panic Type: Rim
• Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
• Series: 10
• UL Listed: Yes
• Part Number: 311095LC4628
• Special Features: Easy to Install
• Grade: ANSI GRADE 1
• Product Type: RIM DEVICE
• Rail Length: 48 inches
• Stile Type: NARROW STILE APPLICATION
• Trim / Function: EXIT ONLY
• UL Listing Type: PANIC HARDWARE
