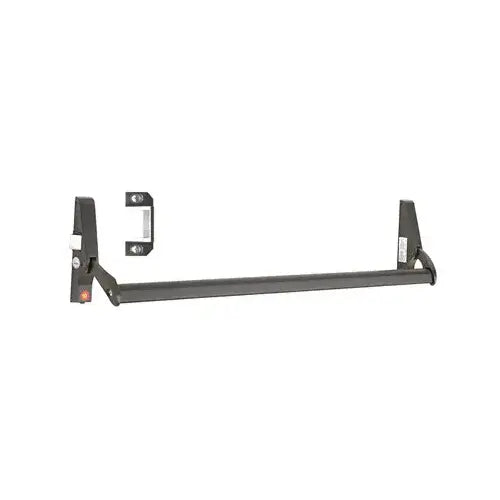

Jackson 311095LC4313 Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device 48

Product Description

The Jackson 311095LC4313 Exit Device is a reliable option for aluminum storefront hardware. This device is built to endure daily use while maintaining functionality. It is compatible with 1-3/4 inches narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The length of the contoured crossbar measures forty-eight inches and can be adjusted in the field. Required mounting hardware is included.

• Designed for use with 1-3/4 inches doors.
• Can operate with crossbar or engraved push paddle.
• Features concealed fastening for enhanced security.

Product Highlights

This exit device ensures safety and performance in commercial settings.

Product Information

Standard Information

• Brand: Jackson
• Certification: ANSI/BHMA 156.3

Technical Specifications

• Door Thickness: 1-3/4 inches (44.5 mm)
• Door Width: 48 inches (1219.2 mm)
• Handing: Left Hand Reverse Bevel (LHR)
• Material - Housing: Aluminum
• Material - Latch & Strike: Sintered Steel
• Material - Mechanical Components: Stainless and Hardened Plated Steel
• Minimum Stile Width: 1-3/4 inches (44.5 mm)
• Model: 1095
• Panic Bar Projection: 4-5/8 inches (117.5 mm)
• Panic Bar Width Net: 48 inches (1219.2 mm)
• Panic Dogging: Screw Driver
• Panic Head Base Width: 1-1/4 inches (31.8 mm)
• Panic Head Height: 7-5/16 inches (185.7 mm)
• Panic Type: Rim
• Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
• Series: 10
• UL Listed: Yes
• Manufacturer: C.R. Laurence
• Part Number: 311095LC4313
• Item Package Quantity: 1
• ADA Compliant: No
