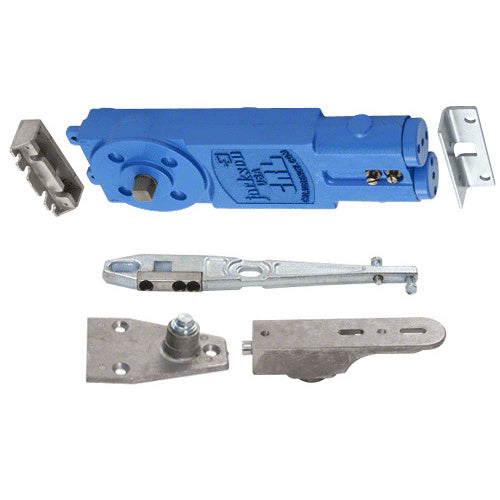

JACKSON 21101S18 Adjustable Spring Power Hold Open Overhead Concealed Closer With S Hardware Package

Product Description

The JACKSON 21101S18 Adjustable Spring Power Overhead Concealed Door Closer accommodates doors between thirty inches and forty-eight inches wide, fulfilling A.D.A. opening force standards. It features an adjustable size range from one (Barrier-Free) to four (Regular). The design includes a floor-mounted pivot for a one and a half inch deep bottom rail and offers three sixteenth inch height adjustments.

• Suitable for doors from thirty inches to forty-eight inches wide
• Adjustable spring size from one to four
• Floor-mounted pivot increases stability

Product Highlights

This closer is ideal for commercial and residential applications, ensuring smooth door operation while maintaining compliance with accessibility requirements.

Product Information

Standard Information

• Brand: JACKSON
• MPN: 21101S18

Technical Specifications

• Body Height: 1 and 11/16 inches
• Body Length: 11 and 5/8 inches
• Body Width: 3 and 11/16 inches
• Bottom Door Rail Depth: 1 and 1/2 inches
• Bottom Pivot Type: Floor Mount Pivot
• Closer Type: Overhead Concealed
• Handing: Double Acting
• Hold Open: 105 degrees
• Material: Aluminum
• Maximum Door Weight: 250 pounds
• Package Type: Side Load S
• Recommended Door Type: Aluminum, Hollow Metal
• Spindle: 1/2 inches
• Spring Size: Adjustable
• Top Rail Depth: 1/2 inches
• Type: Center Hung
• UL Listed: Yes
• Hinge Opening Limit/Door Mode: 105 Degree/Hold Open
• ADA Compliant: Yes
