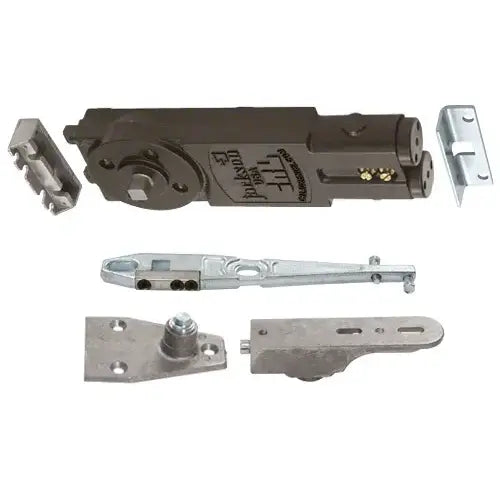

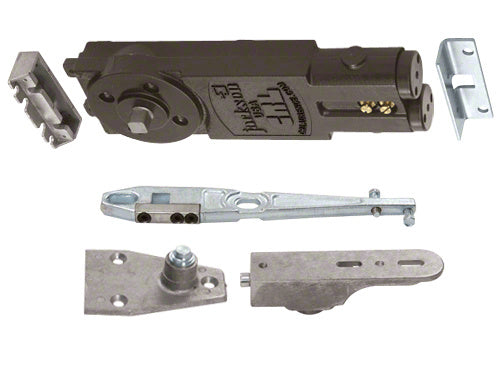

JACKSON 21101S04 Medium Duty 90 Hold Open Overhead Concealed Closer With Side Load Hardware Package

Product Description

The JACKSON 21101S04 is an overhead concealed door closer designed for durability and ease of use. This closer features dual valves for regulating closing and latching speeds, ensuring a smooth operation. It is suitable for doors measuring thirty inches to forty-eight inches wide and fits into standard header extrusions of one and three-quarter inches by four inches or larger.

• Dual valves for adjustable closing and latching speeds.
• Designed for a maximum door opening angle of ninety degrees.
• Available in models with and without hold open features.

Product Highlights

This closer is ideal for commercial and heavy-duty applications, providing controlled door operation and enhanced functionality.

Product Information

Standard Information

• Brand: JACKSON
• Closer Type: Overhead Concealed

Technical Specifications

• Body Height: 1-11/16 inches
• Body Length: 11-5/8 inches
• Body Width: 3-11/16 inches
• Bottom Door Rail Depth: 1-1/2 inches
• Bottom Pivot Type: Floor Mount Pivot
• Handing: Double Acting
• Hold Open: 90 degrees
• Material: Aluminum
• Maximum Door Weight: 250 pounds
• Recommended Door Type: Aluminum, Hollow Metal
• Spring Size: Regular Duty
• Type: Center Hung
• UL Listed: Yes
• Manufacturer: JACKSON
• Part Number: 21101S04
• Certification: UL
• Batteries Required?: No
