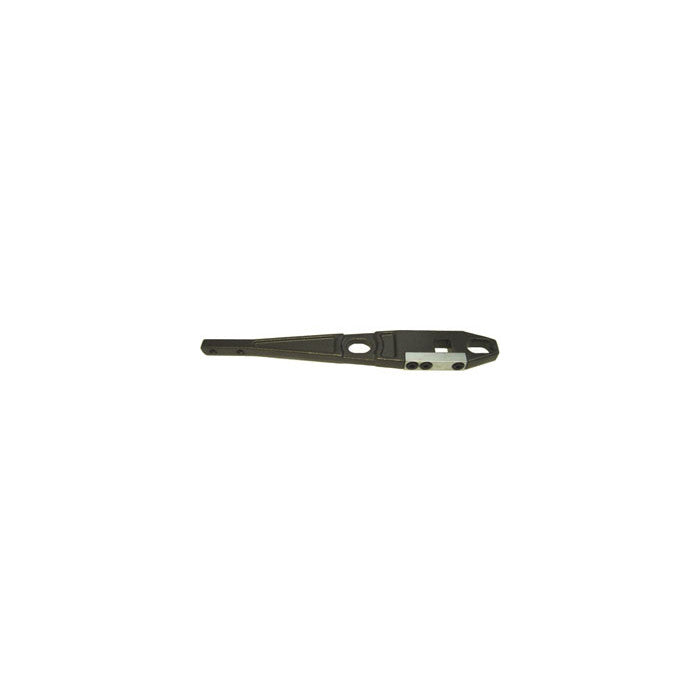

JACKSON 20400B Center-Hung Side-Load Arm Assembly 1/2 Depth Top Rail Replacement International 3010-S

Product Description

The JACKSON 20400B Center-Hung Side-Load Arm Assembly is designed for compatibility with 1/2 inch depth top rails featuring a notch on the side of the door. This assembly includes an adjusting screw that allows for precise adjustments to align doors with jambs, along with bolts for centering the door accurately. It serves as a replacement component for the International 3010-S model.

• Compatible with 1/2 inch (13 mm) Deep Top Rail
• Allows for lateral and centering adjustments
• Includes mounting block and screw pack

Product Highlights

The JACKSON 20400B is an essential replacement arm used with Jackson-CRL concealed overhead closers.

Product Information

Standard Information

• Brand: JACKSON
• Type: Side-Load Arm Assembly

Technical Specifications

• Handing: Non Handed
• Minimum Top Rail Depth: 1/2 inch (12.7 mm)
• Recommended Door Type: Aluminum, Hollow Metal
• Duty: Light Duty
• Dimensions - Length: 10 inches (254 mm)
• Dimensions - Width: 1-1/2 inches (38 mm)
• Dimensions - Height: 1/2 inch (13 mm)
• Application: Side-Load Application for 1/2 inch (13.0 mm) Deep Rail
• Replacement for: International 3010-S Side Load Top Arm
