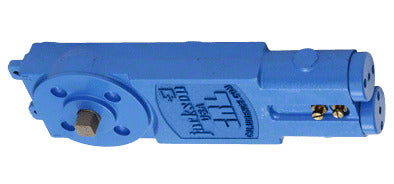

JACKSON 20101M20 Adjustable Spring Power Multi Size 90 Hold Open Overhead Concealed Closer Body

Product Description

The JACKSON 20101M20 is an adjustable spring power overhead concealed closer body designed for doors ranging from thirty inches to forty-two inches wide, depending on the selected spring size and function. It includes dual-action valves that manage both closing and latching speeds, ensuring reliable operation.

• Adjustable spring power from size one to size four
• Compatible with existing fixed spring closers
• Standard and extended spindle options available

Product Highlights

This closer is suitable for a range of applications and is adaptable to various door types, including aluminum and hollow metal.

Product Information

Standard Information

• Body Height: 1-11/16 inches
• Body Length: 11-5/8 inches

Technical Specifications

• Body Width: 3-11/16 inches
• Closer Type: Overhead concealed
• Handing: Double acting
• Hold Open: 90 degrees
• Maximum Door Weight: 250 pounds
• Maximum Door Width - Exterior: 42 inches
• Maximum Door Width - Interior: 36 inches
• Spring Size: Adjustable
• UL Listed: Yes
