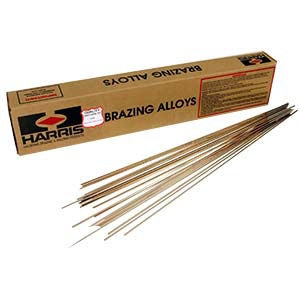

Harris D620F1 Dynaflow Brazing Alloy, 1/8 in Dia x 20 in L, 1 lb Stick Tube

Product Description

The Harris Dynaflow D620F1 is a brazing alloy that measures one eighth inch in diameter and twenty inches in length, available in a one pound stick tube. This product contains six percent silver, six point one percent phosphorus, and eighty-seven point nine percent copper. It is designed to melt and flow at temperatures near those of Stay Silv fifteen, providing strong mechanical properties comparable to that of fifteen percent silver alloys.

• Contains six percent silver, six point one percent phosphorus, and eighty-seven point nine percent copper.
• Melt range close to Stay Silv fifteen, ideal for quality brazing.
• Cost-effective alternative to higher silver content alloys.

Product Highlights

This brazing alloy is suitable for situations where close fit-up is not possible and is effective in managing thermal expansion and vibration.

Product Information

Standard Information

• Brand: Harris
• Part Number: D620F1
• Country of Origin: US
• Container Size: 1 lb
• Container Type: Stick Tube
• Standards: RoHS Compliant

Technical Specifications

• Diameter: 1/8 in
• Length: 20 in
• Chemical Composition: 6% Silver, 6.1% Phosphorous, 87.9% Copper
