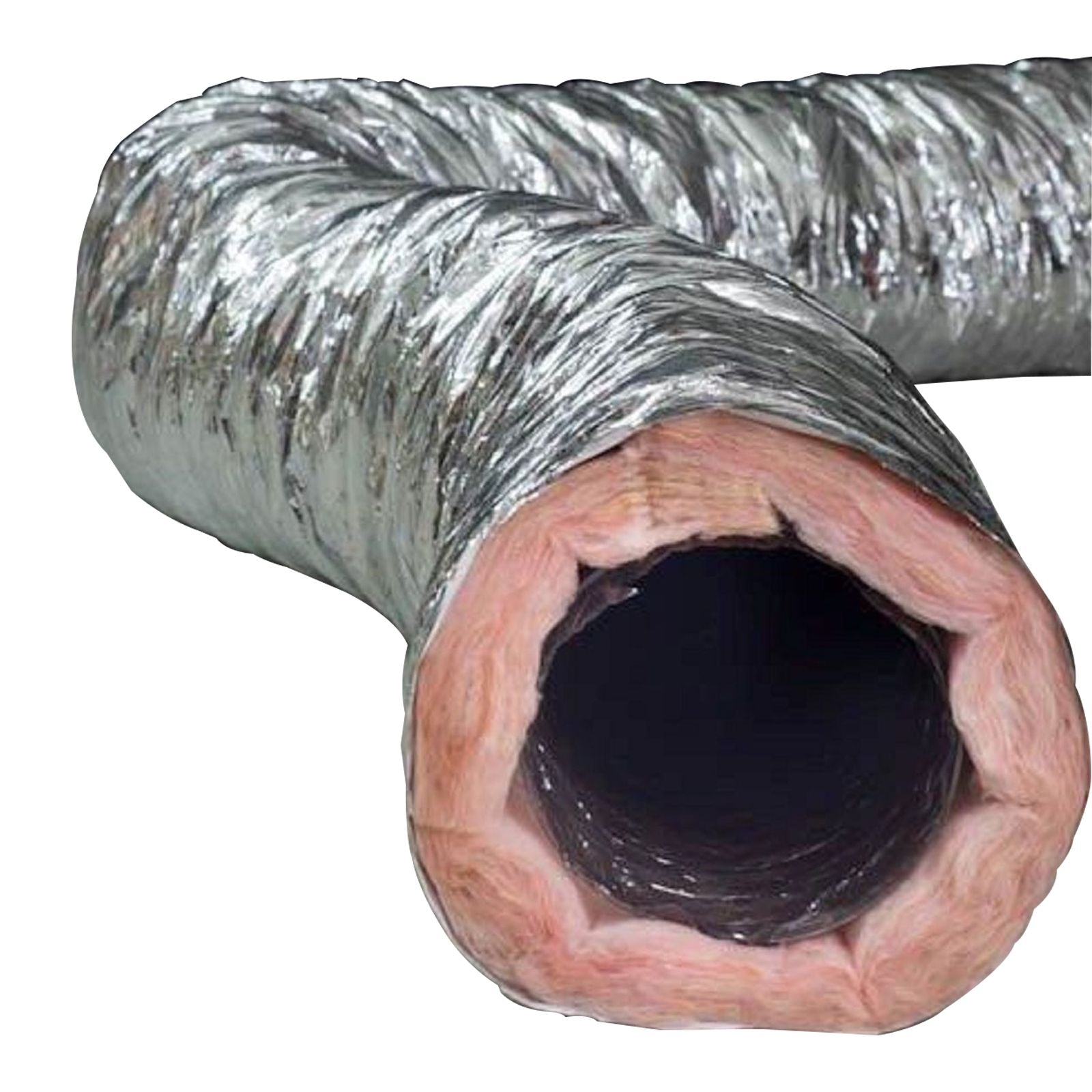

J P Lamborn MHP25R6-16 Silver Flex Duct R6 Insulated 16 x 25'

Product Description

The J P Lamborn MHP25R6-16 is a flexible duct made for HVAC systems. This duct is designed with a strong spring steel wire, surrounded by a dual-layer air-tight core. It includes fiberglass insulation for thermal efficiency and a reinforced vapor barrier for moisture control.

• Insulation R6 for energy efficiency
• Durable metalized polyester jacket
• Handles maximum airflow of 5,000 FPM

Product Highlights

This duct is suitable for both positive and negative pressure applications. It is robust and offers consistent performance across a range of temperatures.

Product Information

Standard Information

• Brand: J P Lamborn
• MPN: MHP25R6-16

Technical Specifications

• Inside Diameter: 16 inches
• Flex Length: 25 feet
• R-Value: R6
• Jacket Color: Silver
• Jacket Material: Metalized Polyester
• Core Material: Polyester
• Maximum Air Flow: 5,000 FPM
• Maximum Pressure: 4 W.G.
• Maximum Temperature: 200°F (93.33°C)
• Operating Temperature: 0°F to 200°F (-17.7°C to 93.3°C)
• Vapor Transmission: 0.01 US Perms
• Fire Rating: Class 1 Air Duct
• Compliance: UL 181, NFPA 90A & 90B
• UL Listed: Yes
• Material: Plastic, Steel
• Vent Duct Shape: Round
