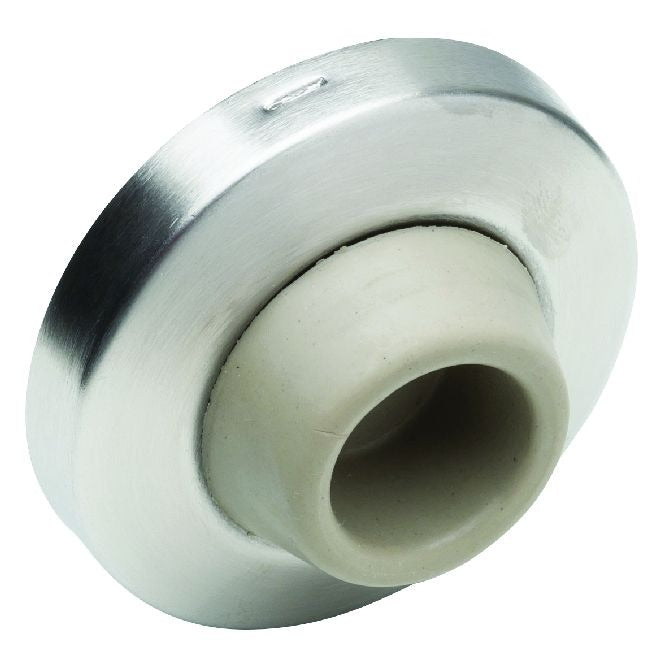

Ives WS406407CCV32D Concave Wall Stop Satin Stainless Steel

Product Description

The IVES WS406407CCV32D is a concave wall stop designed to protect walls and door hardware from impact when a door is opened. The concave cup profile absorbs and deflects door contact, reducing damage to both the door and the wall surface. Finished in satin stainless steel (32D), this stop suits commercial and residential applications where a clean, corrosion-resistant appearance is required. It measures 2.5 inches in diameter and 1.5 inches in depth, and weighs 0.16 pounds. Installation is straightforward for finish carpenters, general contractors, or door hardware specialists working on new construction or retrofit projects.

Wall stops like the WS406407CCV32D are used wherever a door swing must be controlled and wall surfaces protected from door knob or lever contact. Typical applications include office buildings, schools, hospitals, hotels, and residential construction. The satin stainless steel finish coordinates with a wide range of architectural hardware in commercial and institutional door openings. This stop mounts directly to the wall at baseboard height or at a height corresponding to the door hardware contact point.

Key Features

• Concave cup profile deflects door contact and reduces impact damage to walls
• Satin stainless steel finish (32D) provides corrosion resistance and a clean architectural appearance
• Compact footprint at 2.5 inches diameter fits standard baseboard and drywall installations
• Lightweight at 0.16 pounds, minimizing wall anchor load requirements
• Sold individually, with case quantity of 10 for larger project procurement

Compatibility

Designed as an OEM-style wall stop for standard commercial and residential door openings requiring wall-mounted door control hardware.

Installation Notes

Wall stops are typically installed by finish carpenters, door hardware contractors, or general contractors during punch-out or finish phases of construction. Mount to a solid wall stud or use an appropriate wall anchor rated for the door weight and swing force when stud mounting is not possible. Ensure the stop is positioned to intercept the door knob, lever, or edge before contact with the wall surface. No special tools beyond a drill and screwdriver are required for standard installations.
