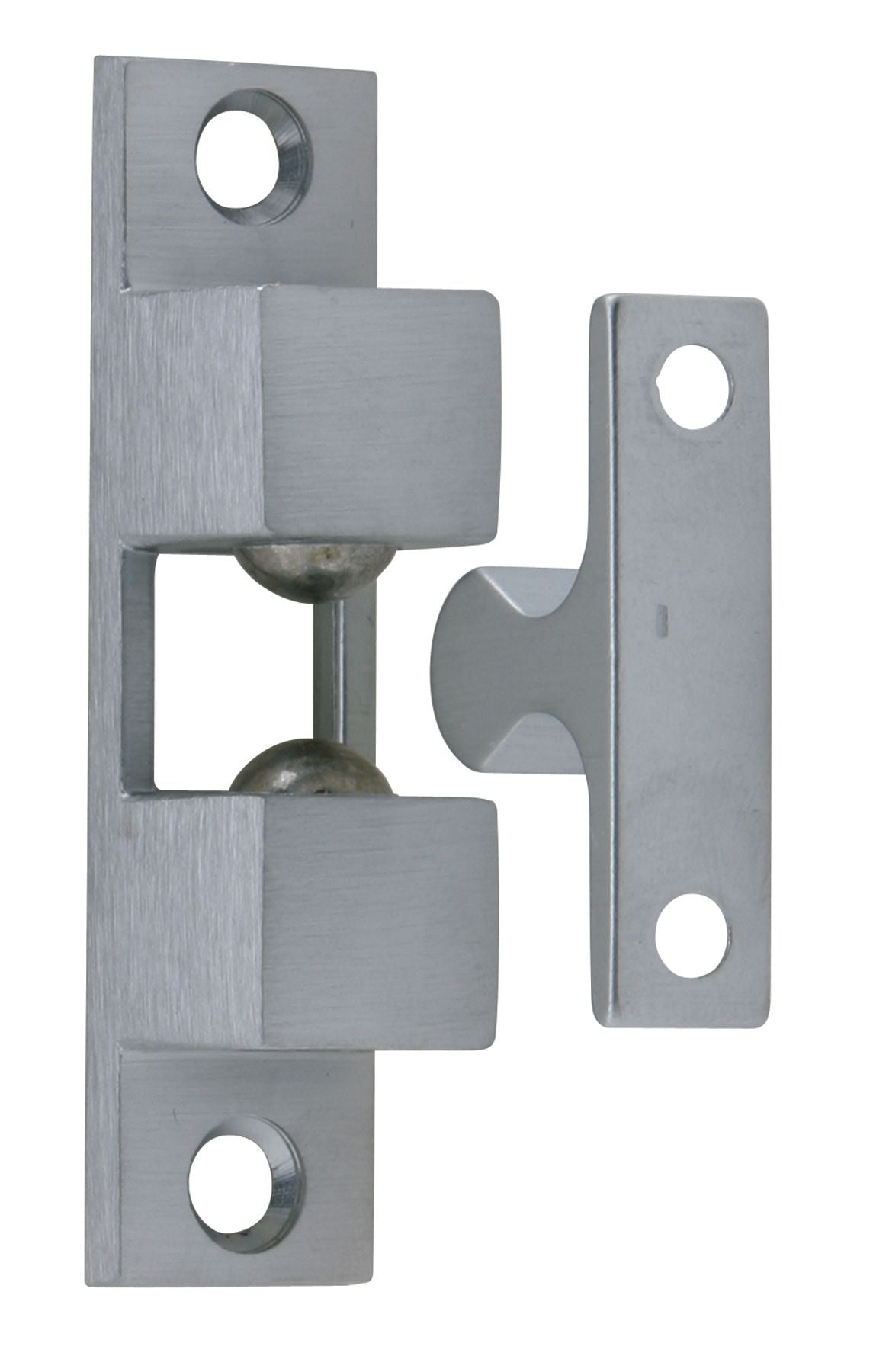

Ives CL21A26D 4-way Ball Catch Cabinet Latch Satin Chrome

Product Description

The IVES CL21A26D is a 4-way ball catch cabinet latch finished in satin chrome. It is designed to hold cabinet doors, light passage doors, and similar applications closed without a turn knob or lever — the ball detent engages the strike on contact and releases with light pressure. At 3 inches long and 0.75 inches in both width and height, it installs in tight clearances where conventional latches will not fit. Weighing 0.2 pounds, it is a compact, low-profile hardware component suitable for millwork, cabinetry, and interior door applications. Installation is straightforward and is typically handled by carpenters, finish trades, or general contractors.

The CL21A26D suits residential and light commercial cabinetry, built-ins, and interior passage doors where a positive but tool-free latching action is required. The 4-way catch allows the ball to engage from multiple directions, making it useful in applications where door alignment may vary slightly or where a consistent catch is needed regardless of minor door movement. The satin chrome finish coordinates with standard architectural hardware in commercial and residential settings.

Key Features

• 4-way ball detent design engages from multiple directions for consistent latching
• Satin chrome finish suits a wide range of architectural hardware palettes
• Compact profile — 3 inches long by 0.75 inches wide by 0.75 inches tall — fits tight clearances
• Lightweight at 0.2 pounds for use in cabinetry and light interior door applications
• Sold individually (EA) for single-unit replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation ball catch latch for residential and light commercial cabinetry and interior passage doors requiring a compact 4-way detent mechanism.

Installation Notes

Install the CL21A26D using standard woodworking or finish carpentry tools. Power is not required for this mechanical latch. Ensure the cabinet face frame or door edge is properly prepped and that the strike is aligned with the ball detent before final fastening. Confirm door alignment before installation to take full advantage of the 4-way engagement.
